Lab-Grade, Bridge CMM (Coordinate Measuring Machine)
Bridge-style CMMs with lab-level accuracy built for precision, speed & durability
Fowler Aberlink’s lab‑grade coordinate measuring machines are designed for the most demanding inspection tasks, delivering bridge‑style accuracy for larger and heavier parts.
The line begins with the versatile Axiom bridge CMM, which offers manual or CNC operation with lab‑grade accuracy, automatic probe changing and the ability to handle bigger, heavier workpieces.

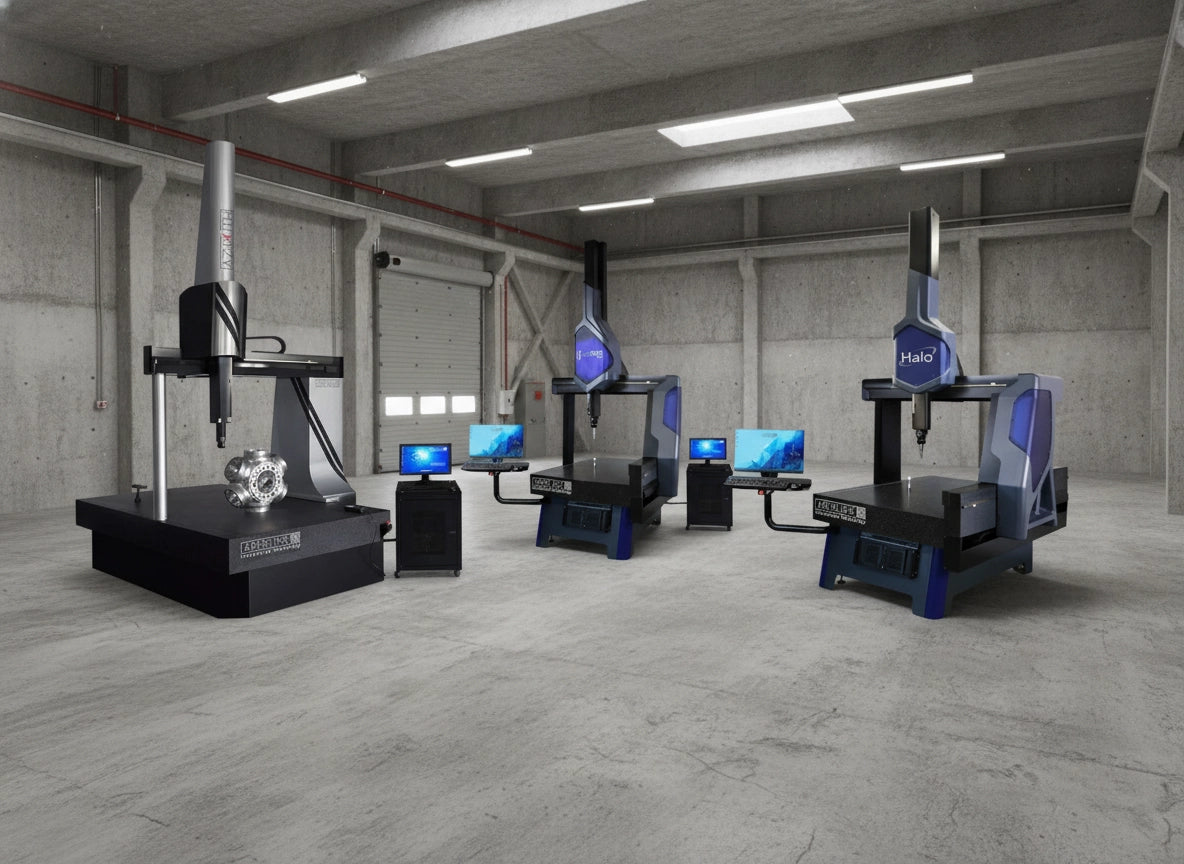

At the top end are the Horizon, Halo and Azimuth models—lab‑accurate CNC CMMs built for components up to roughly 2 metres and 6,000kg. These machines combine linear or belt‑drive technology with scanning options and Teach & Repeat programming, making them ideal for precision labs that need reliable, high‑throughput measurement.

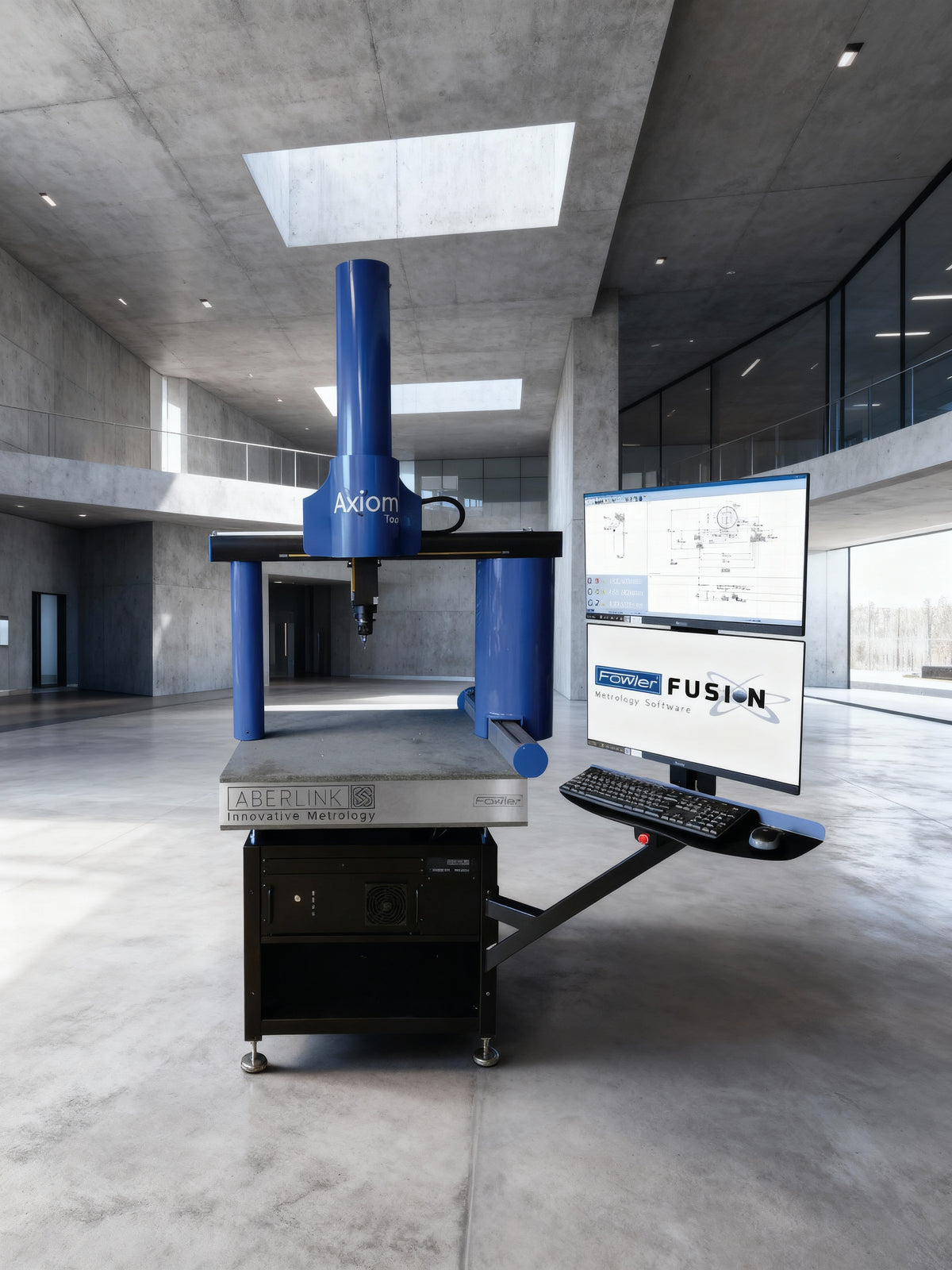

Axiom CMM
- Space-saving benchtop design fits into tight quality labs without sacrificing measurement capability
- Granite construction provides thermal stability for consistent accuracy
- Flexible probe configurations accommodate touch-trigger and scanning applications
- Ideal for job shops, tool rooms, and manufacturers with diverse part portfolios and limited floor space

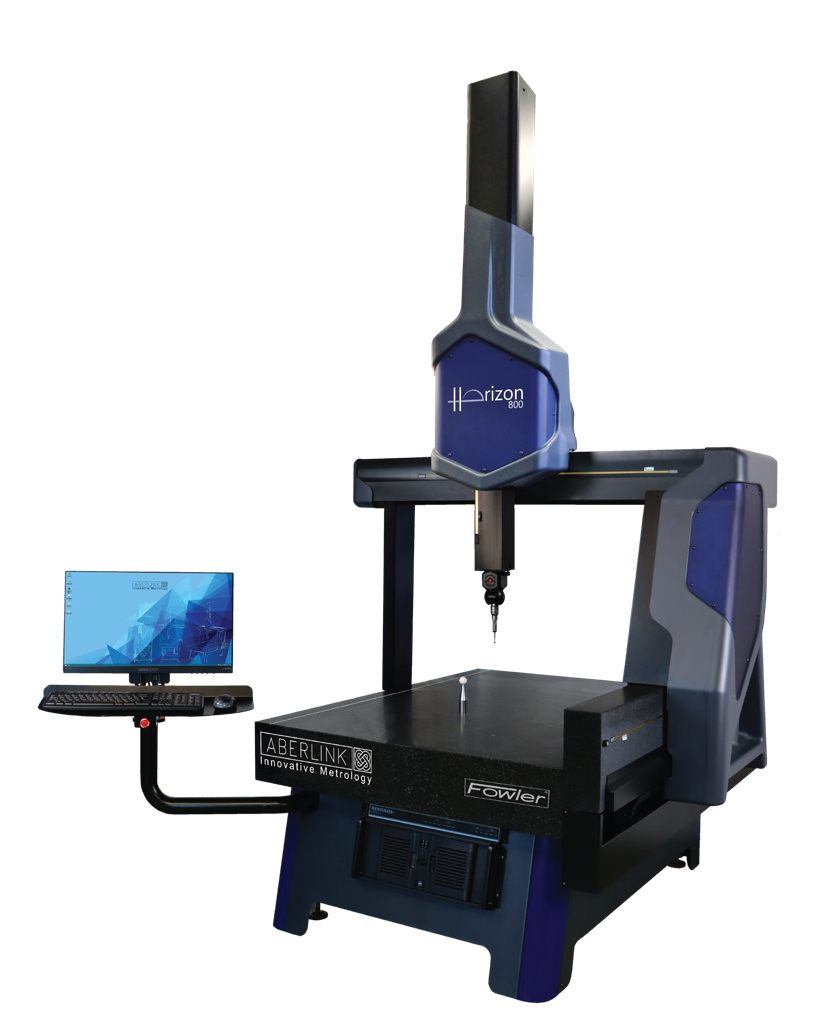

Horizon CMM
- Mid-range capacity balances work envelope size with footprint efficiency
- Fast measurement cycles keep pace with production demands
- Intuitive programming reduces setup time and operator training requirements
- Perfect for automotive suppliers, contract manufacturers, and precision machining operations

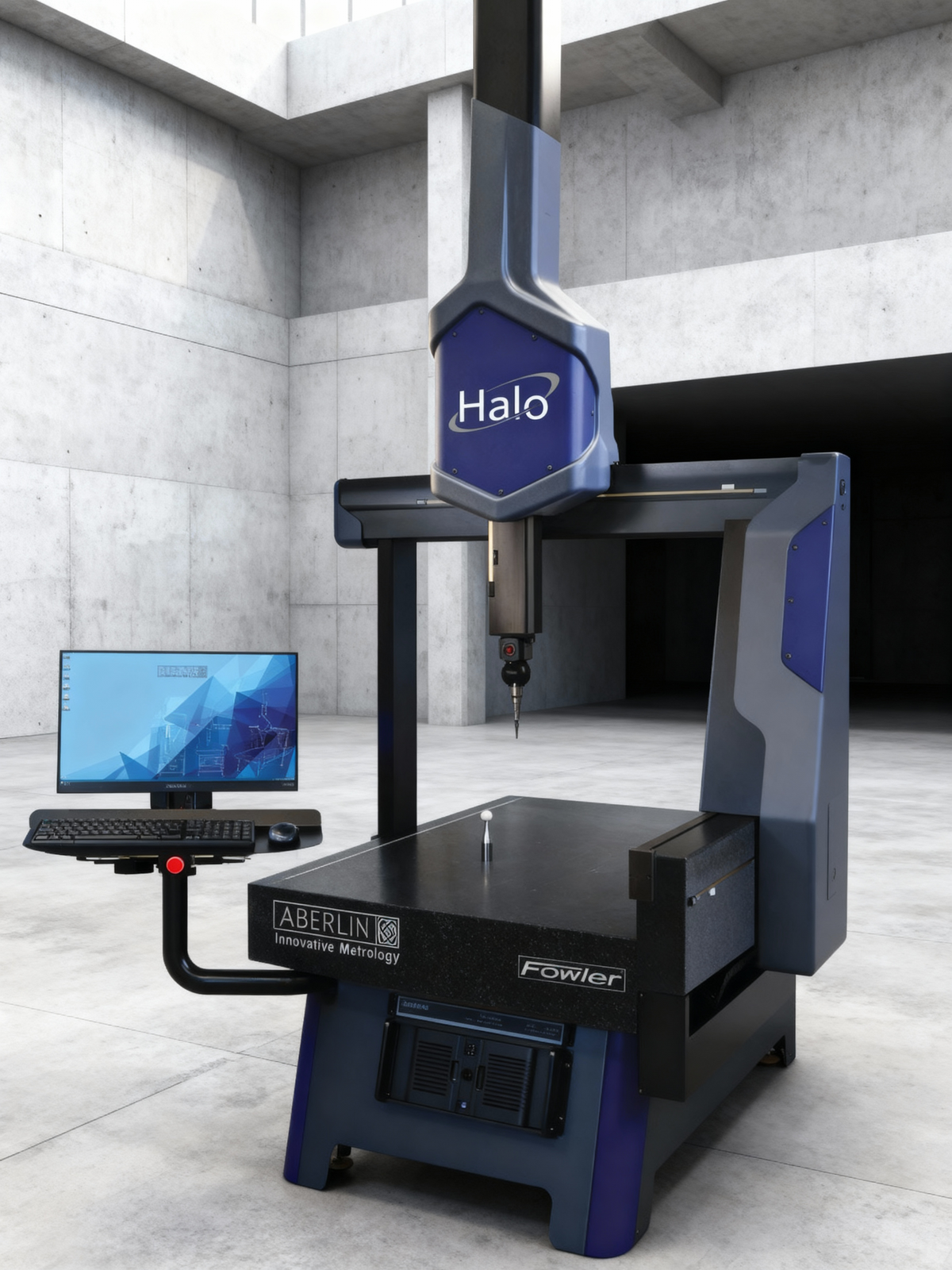

Halo CMM
- Multi-sensor capability integrates touch-trigger, scanning, and optical measurement in one platform
- High-accuracy specifications meet the most demanding tolerance requirements
- Temperature compensation maintains precision in real-world shop conditions
- Built for aerospace, medical device, and high-precision manufacturing where complexity meets tight tolerances

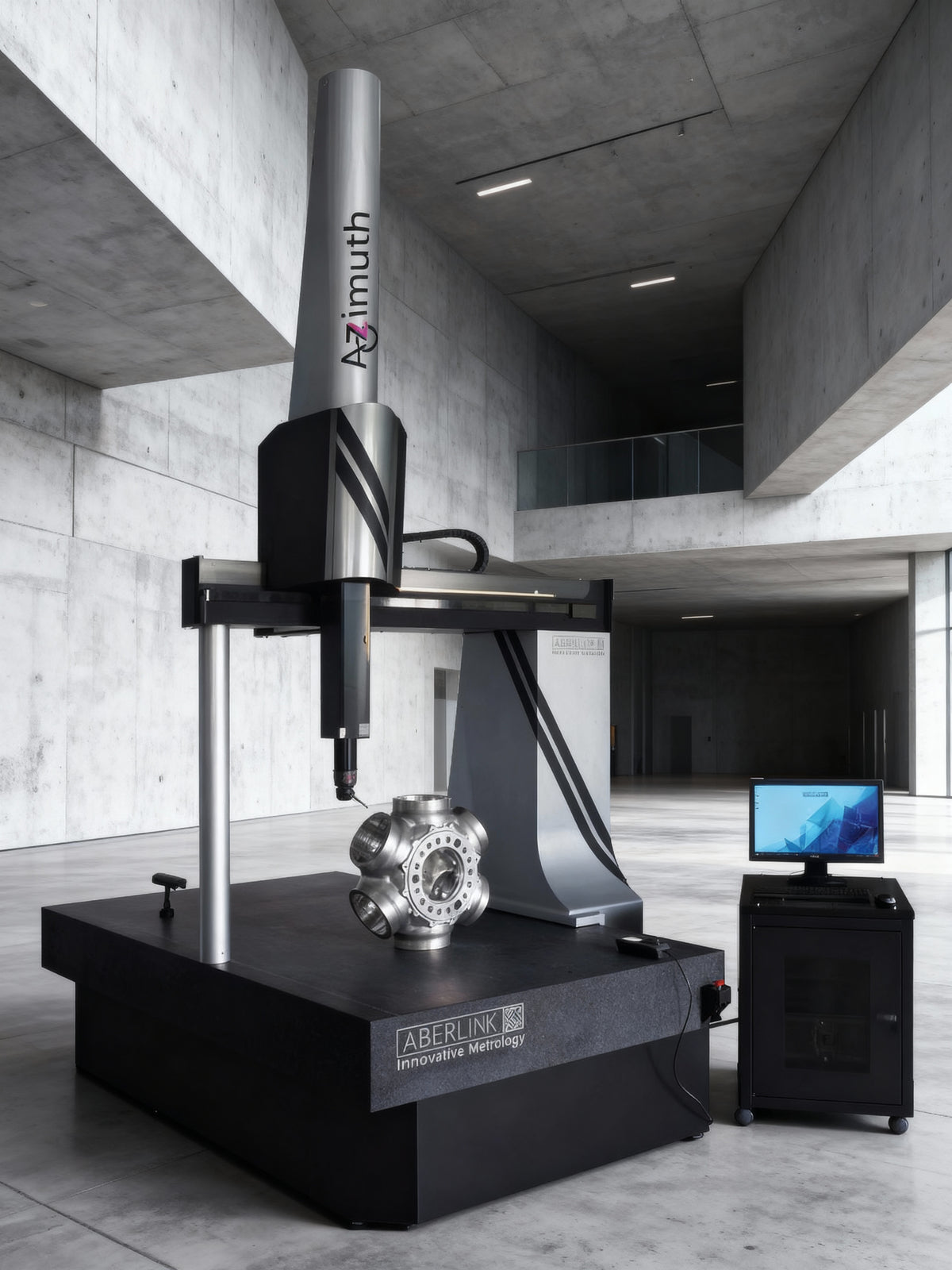

Azimuth CMM
- Expansive work envelope handles oversized parts, assemblies, and castings
- Robust granite bridge design delivers stability across the entire measurement volume
- Scalable automation options from manual operation to fully automated inspection cells
- Essential for heavy equipment, aerospace structures, and large fabrication manufacturers who measure big parts with precision
All of our CMMs use the same software - Aberlink3D
Often overlooked, the software ease-of-use is a critical component of a successful CMM inspection process - and making it easy for all team members to learn & use.
Expect modern & intuitive software with your CMM... without annual fees!
- Visual measurement model – Aberlink 3D builds a 3D representation of the part as you measure, allowing you to click features to call up dimensions like they appear on drawings.
- Automatic feature recognition – Automatic routines and feature recognition handle 2D/3D inspection (manual or CNC) for geometric and free‑form shapes.
- Simple programming – Teach‑and‑repeat routines and a drag‑and‑drop editor let you create or edit programs without learning code.
- Safe moves & auto‑programming – The software automatically generates safe moves and saves inspection routines for future parts.
- Flexible reporting – Generate drawing‑style GD&T reports, pass/fail summaries or batch and SPC reports, then export to Excel.
- CAD comparison – Import STEP/IGES models, align point clouds and display colour‑coded deviations with best‑fit routines.
- CAD programming – Click on surfaces in a CAD model to define measurement points; Feature Predict identifies planes, circles or cylinders.
- Vision integration – A kinematic joint lets you swap between probe and camera quickly; the vision module offers automatic edge detection and smart‑measure tools.
Download the CMM Brochure
