The Horizon CMM (Coordinate Measuring Machine)
An easy-to-use, 3D inspection tool for larger parts with lab-grade accuracy
What makes the Horizon CMM a great inspection tool for your shop?
A quick preview of the Horizon, Halo and Azimuth CMMs from Fowler Application Engineer, Collin (about 1 min) -->
FAST, Lab grade accurate inspection for big parts
High‑Performance Linear‑Drive Motion
- Frictionless linear motors: Linear drives provide smooth, silent motion with no mechanical contact, enhancing speed and suitability for contact scanning.
- Kinematic isolated drive: Motor thrust is applied through the centre of gravity, improving speed and accuracy while keeping heat away from the metrology frame.
- Optimised bridge design: Carbon‑fibre components and an optimised split Y‑axis carriageway deliver a high stiffness‑to‑weight ratio and reduce acceleration‑induced metrology errors
X-Axis Range Options
800mm, 1000mmm
Y-Axis Range Options
1000mm, 1200mm, 1600mm, 2000mm
Z-Axis Range Options
600mm, 800mm
Volumetric Accuracy
TP20
(1.8µm + L/350mm)
TP200
(1.7µm + L/350mm)
SP25M
(1.5µm + L/350mm)
Exceptional Accuracy & Stability
- First‑term error under 2 µm: When fitted with Renishaw probes, the Horizon offers first‑term volumetric error below two microns.
- Thermally isolated motors: Linear motors are isolated from the granite structure to prevent heat from affecting measurements.
- Automatic temperature compensation: Built‑in compensation ensures results are reported as if measured at 20 °C, improving accuracy in variable environments

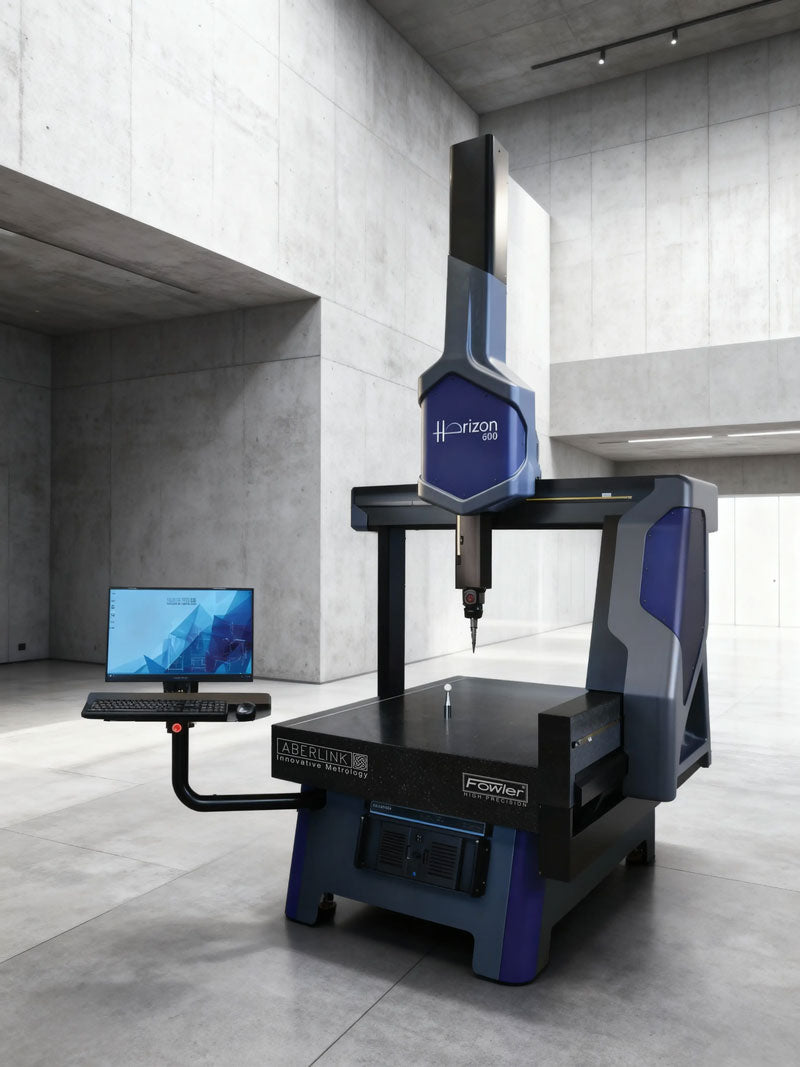

Horizon CMM Design - built to last
Reliability & Low Maintenance
- No wearing parts: Non‑contact linear motors have no mechanical wear, boosting long‑term reliability and reducing maintenance requirements.
- Granite table and Y‑axis rail: Granite provides thermal stability; the rail and drive system are designed to keep heat away from encoders.
- Durable accessories: Each machine comes with an industrial joystick and free stylus change rack for motorised probe heads.
Choose your size
Sizing and Probe Options
- Multiple measuring volumes: Horizon models offer Y‑axis travels of 1,000 mm or 1,600 mm, while Horizon L adds additional Y-axis options of 1,200mm or 2,000mm
- Probe and accessory choices: Users can select various Renishaw probes, automation interfaces, camera systems, for example:
-- RTP20 indexing probe head
-- PH10T motorized head; this can carry TP20 or TP200 probes for touch‑trigger measurement
-- PH10M motorized head with SP25 scanning probe for continuous scanning
-- PH6M probe mount (also used with the SP25 scanning probe)
--A camera‑based vision system is available as an option; it allows non‑contact measurement and quick swapping between probe and camera. - The Horizon can be supplied with any Renishaw touch‑trigger probe and probe head, so customers can choose other Renishaw options if required.
- Shop‑floor suitability: Designed for inspection rooms or production environments; granite table supports loads up to 1,000 kg.
The Horizon uses the same software as all of our CMMs - Aberlink3D
Often overlooked, the software ease-of-use is a critical component of a successful CMM inspection process - and making it easy for all team members to learn & use.
No Annual Fees!!
Expect modern & intuitive software with your CMM... without annual fees!
- Visual measurement model – Aberlink 3D builds a 3D representation of the part as you measure, allowing you to click features to call up dimensions like they appear on drawings.
- Automatic feature recognition – Automatic routines and feature recognition handle 2D/3D inspection (manual or CNC) for geometric and free‑form shapes.
- Simple programming – Teach‑and‑repeat routines and a drag‑and‑drop editor let you create or edit programs without learning code.
- Safe moves & auto‑programming – The software automatically generates safe moves and saves inspection routines for future parts.
- Flexible reporting – Generate drawing‑style GD&T reports, pass/fail summaries or batch and SPC reports, then export to Excel.
- CAD comparison – Import STEP/IGES models, align point clouds and display colour‑coded deviations with best‑fit routines.
- CAD programming – Click on surfaces in a CAD model to define measurement points; Feature Predict identifies planes, circles or cylinders.
- Vision integration – A kinematic joint lets you swap between probe and camera quickly; the vision module offers automatic edge detection and smart‑measure tools.
Download the CMM Brochure
Add your descriptive text here. This flexible layout allows you to showcase your content alongside an image.

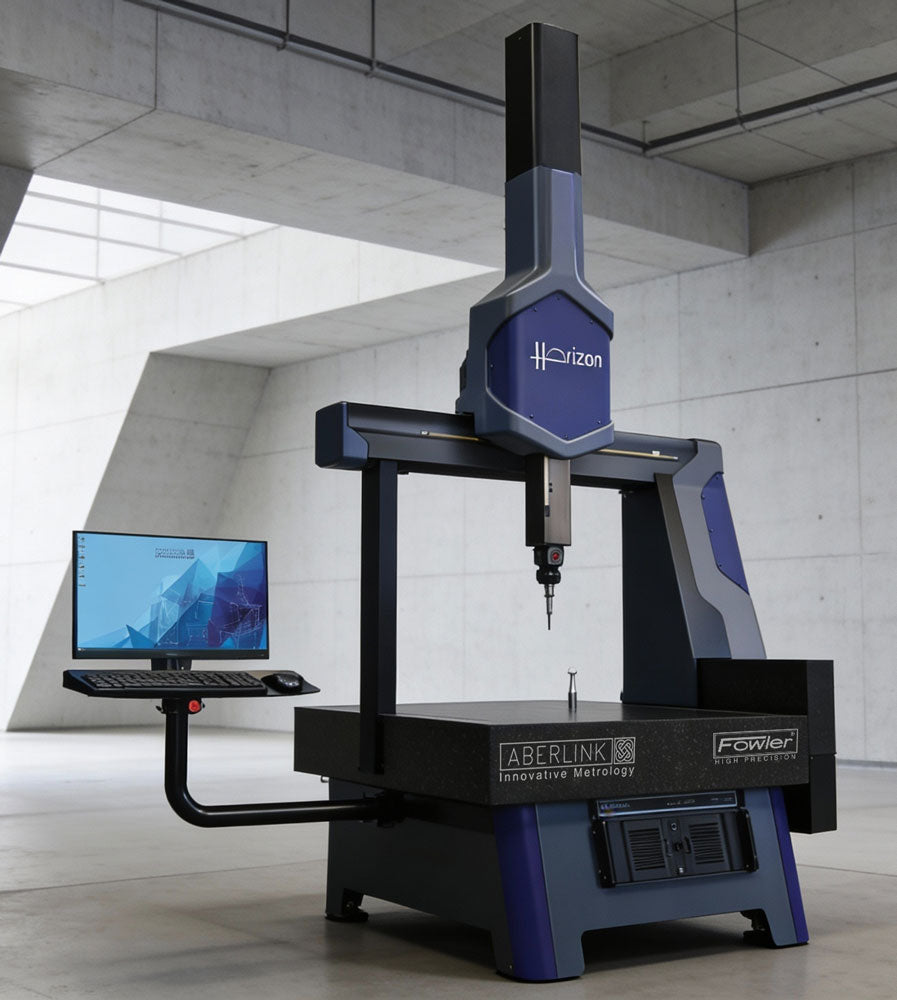

Fowler Aberlink Horizon Specifications
| Specification | Horizon | Horizon L |
|---|---|---|
| Axis Travel (mm) | X: 800mm Y: 1000mm, 1600mm Z: 500mm |
X: 1000mm Y: 1200mm, 2000mm Z: 800mm |
| Overall Size (mm) | X: 1403mm Y: 1530mm, 2130mm Z: 2700mm |
X: 1603mm Y 1830mm, 2630mm Z: 3110mm, 3160mm |
| Motion | CNC | |
| CMM Structure | Bridge CMM | |
| Suitable For | Inspection Room / Shop Floor | |
| Drive Type | Linear | |
| *Volumetric Accuracy | TP20(1.8µm + L/350mm) TP200(1.7µm + L/350mm) SP25M(1.5µm + L/350mm) |
|
| Scale Resolution | 0.1µm | |
| **Optimum Temp Range | 18 - 22°C / 64°F - 72°F | |
| Operational Temp Range | 5 - 45°C /. 41°F - 113°F | |
| Table Consruction | Solid Granite | |
| Table Load Capacity | 1000kg | |
| Max. Velocity Vector | 1000mm/sec | |
| Aberlink Camera Support | Yes | |
