The Azimuth CMM (Coordinate Measuring Machine)
An easy-to-use, 3D inspection tool for larger parts with lab-grade accuracy
What makes the Azimuth CMM a great inspection tool for your shop?
A quick preview of the Horizon, Halo and Azimuth CMMs from Fowler Application Engineer, Collin (about 1 min) -->

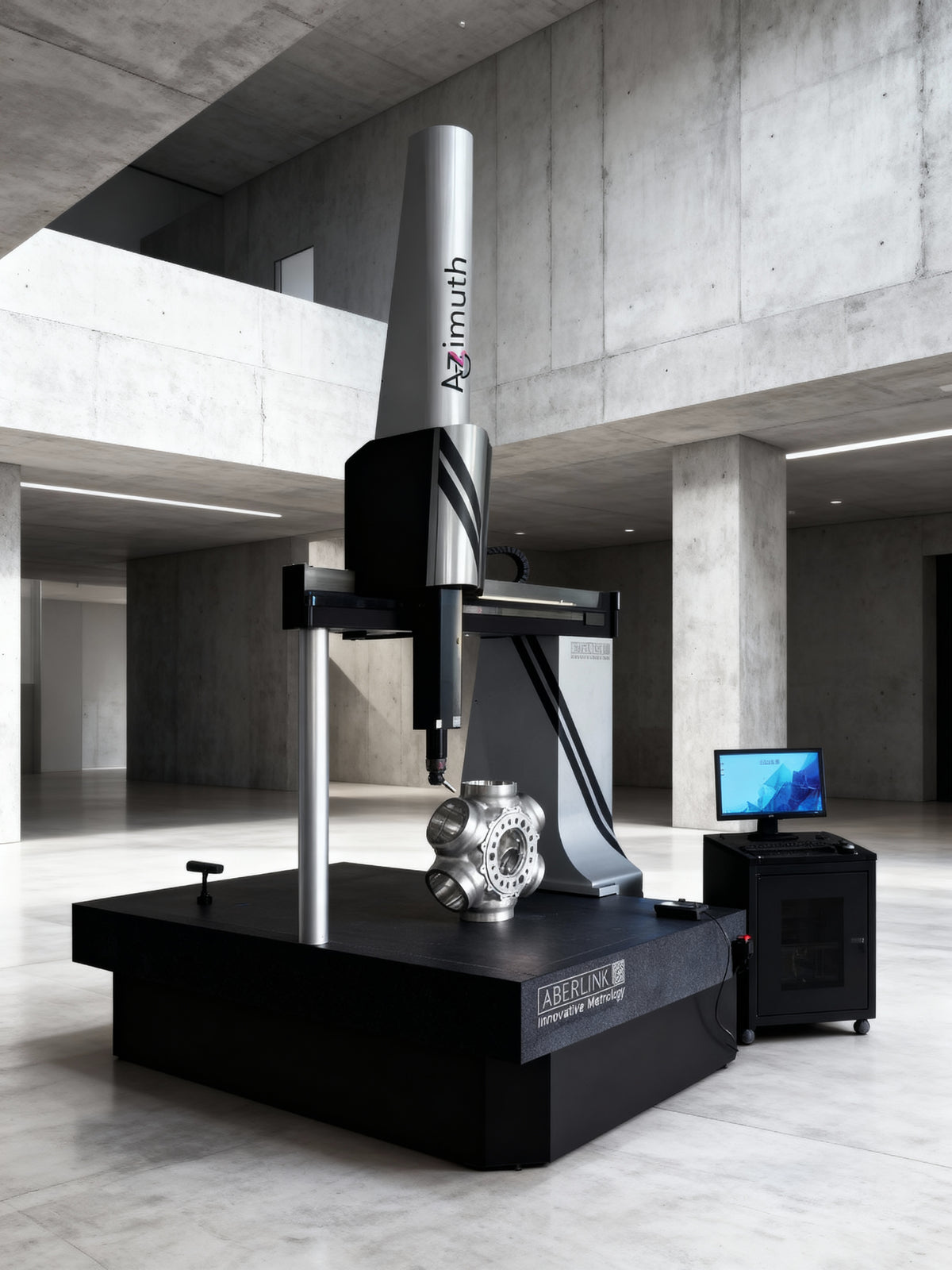

Precise and reliable large format cmm
Stiff, Fast & Built for Large, Heavy Parts
- Honeycomb bridge: Aluminium honeycomb panels give an exceptional stiffness‑to‑weight ratio, delivering fast, precise motion for large parts.
- Speed and accuracy: Despite its size, the Azimuth offers high speed and excellent accuracy thanks to its advanced drive systems.
- Reliable Y‑axis design: A novel Y‑axis system ensures no degradation in performance across machine sizes up to 3 m.
- Load plate innovation: A purpose‑built load plate sits on the granite base to handle components up to six tonnes, transferring weight directly to the floor.
- Large work envelopes: Y‑axis travel options of 2 m or 3 m allow measurement of very large parts.
- High table capacity: Granite table supports loads of up to 6,000 kg, making the machine suitable for heavy‑duty applications
X-Axis Range
1200mm
Y-Axis Range Options
2000mm, 3000mm
Z-Axis Range
1000mm
Volumetric Accuracy
TP20 Probe
(2.9µm + L/250mm)
TP200 Probe
(2.8µm + L/250mm)
SP25M Probe
(2.6µm + L/250mm)
Precision and Reliability
- 0.0001 mm encoders: High‑resolution linear encoders enhance measurement precision across the entire volume.
- Self‑contained drive system: Integrated drive ensures consistent performance throughout the measuring volume.
- Robust construction: The Azimuth’s design reflects over two decades of metrology innovation, combining new materials and engineering to ensure durability.
Horizon CMM Design - built to last
Configurability & Expansion
- Multiple Y‑axis lengths: Standard options range from 2 m to 3 m, with some distributors offering shorter Y‑axis choices for custom configurations.
- Probe and accessory options: Supports Renishaw touch‑trigger and scanning probes, plus automation interfaces, camera systems and fixture kits.
- Future‑proof design: Heavy load capacity, modular options and (FREE) software upgrades ensure the Azimuth can adapt to evolving inspection needs.
The Horizon uses the same software as all of our CMMs - Aberlink3D
Often overlooked, the software ease-of-use is a critical component of a successful CMM inspection process - and making it easy for all team members to learn & use.
No Annual Fees!!
Expect modern & intuitive software with your CMM... without annual fees!
- Visual measurement model – Aberlink 3D builds a 3D representation of the part as you measure, allowing you to click features to call up dimensions like they appear on drawings.
- Automatic feature recognition – Automatic routines and feature recognition handle 2D/3D inspection (manual or CNC) for geometric and free‑form shapes.
- Simple programming – Teach‑and‑repeat routines and a drag‑and‑drop editor let you create or edit programs without learning code.
- Safe moves & auto‑programming – The software automatically generates safe moves and saves inspection routines for future parts.
- Flexible reporting – Generate drawing‑style GD&T reports, pass/fail summaries or batch and SPC reports, then export to Excel.
- CAD comparison – Import STEP/IGES models, align point clouds and display colour‑coded deviations with best‑fit routines.
- CAD programming – Click on surfaces in a CAD model to define measurement points; Feature Predict identifies planes, circles or cylinders.
- Vision integration – A kinematic joint lets you swap between probe and camera quickly; the vision module offers automatic edge detection and smart‑measure tools.
Download the CMM Brochure
Check out our comprehensive CMM lineup and get a sense for which one would be the best fit for your application.
Fowler Aberlink Horizon Specifications
| Specification | Azimuth |
|---|---|
| Axis Travel (mm) | X: 1200mm Y: 2000mm, 3000mm Z: 1000mm |
| Overall Size (mm) | X: 1940mm Y: 3000mm, 4000mm Z: 3595mm |
| Motion | CNC |
| CMM Structure | Bridge CMM |
| Suitable For | Inspection Room / Production Environment |
| Drive Type | Linear |
| *Volumetric Accuracy | TP20(2.9µm + L/250mm) TP200(2.8µm + L/250mm) SP25M(2.6µm + L/350mm) |
| Scale Resolution | 0.1µm |
| **Optimum Temp Range | 18 - 22°C / 64°F - 72°F |
| Operational Temp Range | 5 - 45°C /. 41°F - 113°F |
| Table Construction | Solid Granite |
| Table Load Capacity | up to 6000kg |
| Max. Velocity Vector | 600mm/sec |
| Aberlink Camera Support | Yes |
