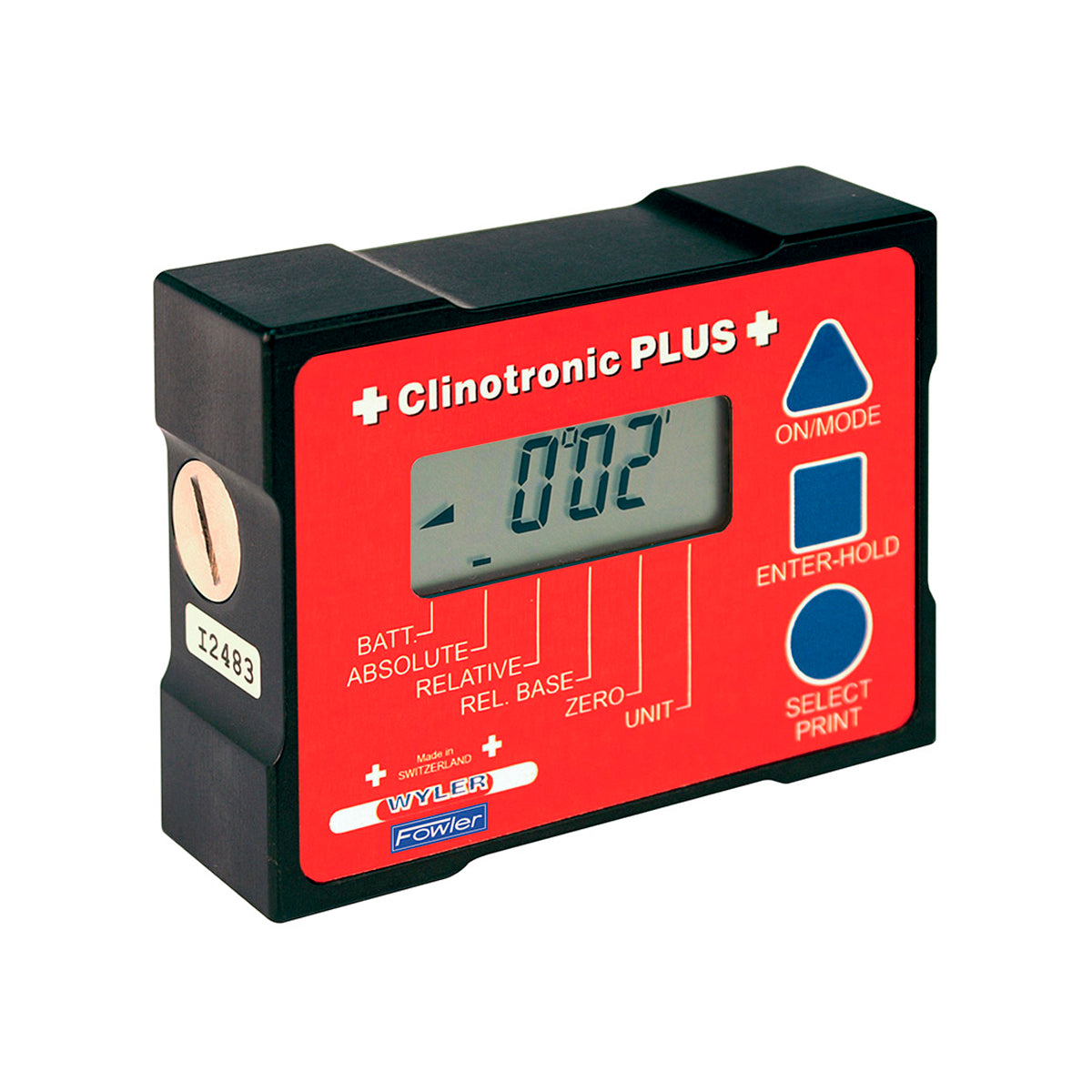

Fowler Wyler Clinotronic Plus 45

$4,500.00

The Fowler Wyler Clinotronic Plus is an electronic level with unsurpassed versatility. It is economically priced and uses a specially designed microprocessor and the well-proven WYLER inclination sensor.

Features:

  • Range of ±45°, capacity of 0-360°.
  • Resolution of 0.01° (selectable).
  • Adjustable base length.
  • Built-in calibration program.
  • Uses standard 1.5v AA batteries.
  • Desired units to be selected by push button.
  • Automatic setting of zero by push-button command.
  • Display: use any units common to inclination measurements.
  • Absolute or relative measuring mode selectable by push button.
  • Seal-tec technology for excellent performance even in difficult environmental conditions.
  • Interface connection RS232 is integrated.Special purpose cables available.
  • Low battery indication.
  • No loss of calibration data by power failure.
  • Price includes fitted case.

Magnetic inserts and threaded mounting holes available. Contact the Fowler Technical Department.

Order by 2PM EST for same-day shipping*
SKU: 546356010
10+ In Stock

* Sale pricing & same-day shipping applies only to in-stock items
  • Additional Details & Features

Technical Specifications:
Measuring range/capacity: ± 45°/0-360°Response time: value available within 5 seconds.

Repeatability: <.01°

Temp. coefficient: less than 0.01°/°C.

Data output: Serial

Battery: Standard AA 1.5V alkaline/130hrs or AA 3.0V Mn02-Lithium (for longer operation 300/hrs)

Housing: aluminum hard anodized

Dimensions: 4 x 3 x 1"(100 x 75 x 30mm)

Weight: 13 oz.(380 grams)

Temp. range: operational 0 to 40°C.


The following measuring units may be selected:

Deg/Arcmin: 00° 00'

Arcmin/Arcsec: 00' 00''

GON/Neugrad (2 Dec): 00.00 gon

GON/Neugrad (4 Dec): .0000 gon

mm/rel. Basis (2 Dec): 00.00 mm/m

mm/rel. Basis (4 Dec): .0000 mm/m

Inch/rel. Basis (4 Dec): .0000"/10"

Artillery per mile A%: 0000

mm/m (2 Dec): 00.00 mm/m

Inch/10 Inches: .0000"/10"

Inch/12 Inches: .0000"/12"

Milliradian: 00.00 mrad (2 Dec)

Milliradian: 0000 mrad

Deg (2 Dec): 00.00°

Deg (4 Dec): .0000°


Linearity

Measuring Value / Limits of Error

≤ 10° / < 1 arcmin + 1 digit

> 10° ≤ 30° / < 1.5 arcmin + 1 digit

> 30° ≤ 45° / 2 arcmin + 1 digit
