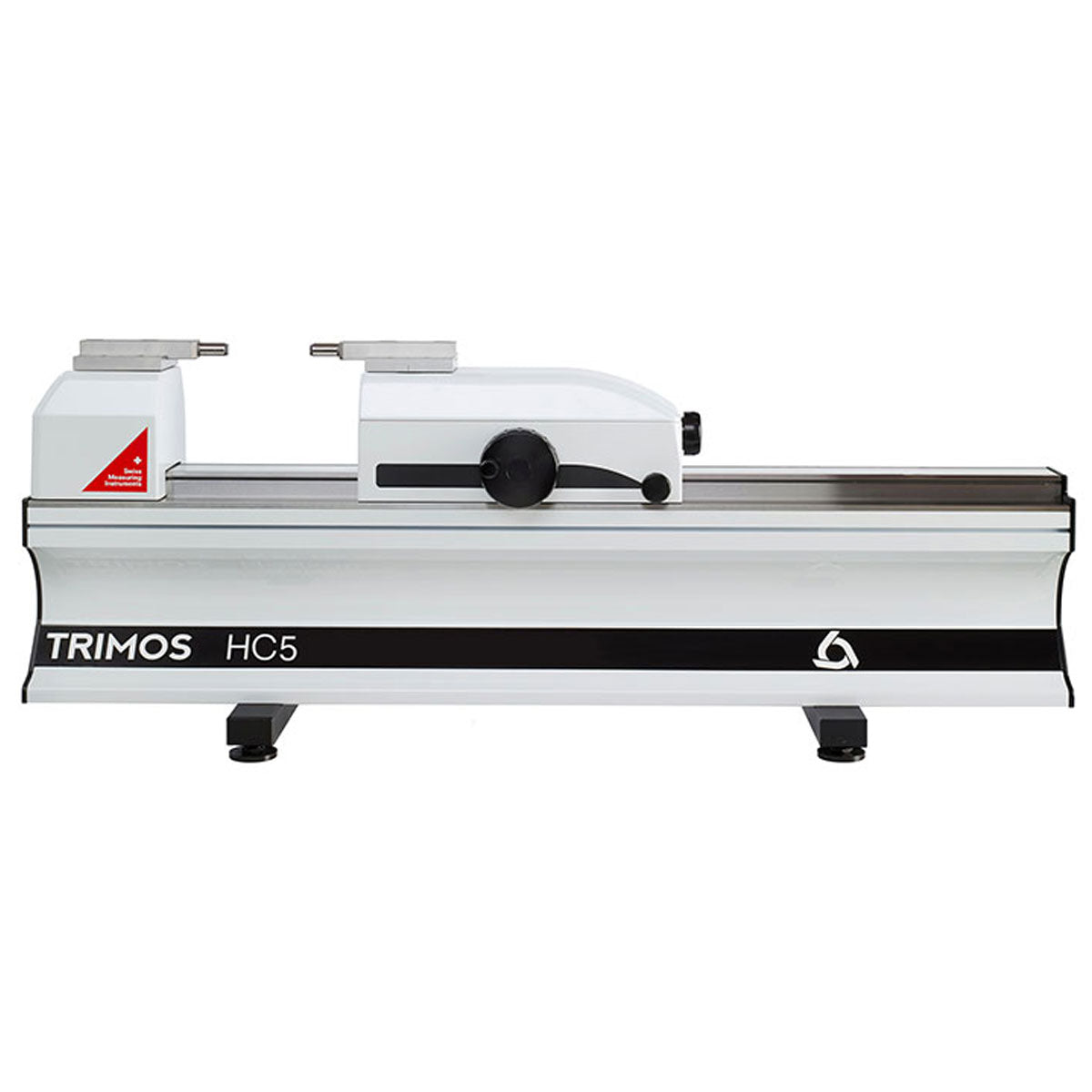

Fowler Trimos HC5 - Calibration Instrument, 14"/350mm

SKU: 541973700

New Generation of Calibration Instruments

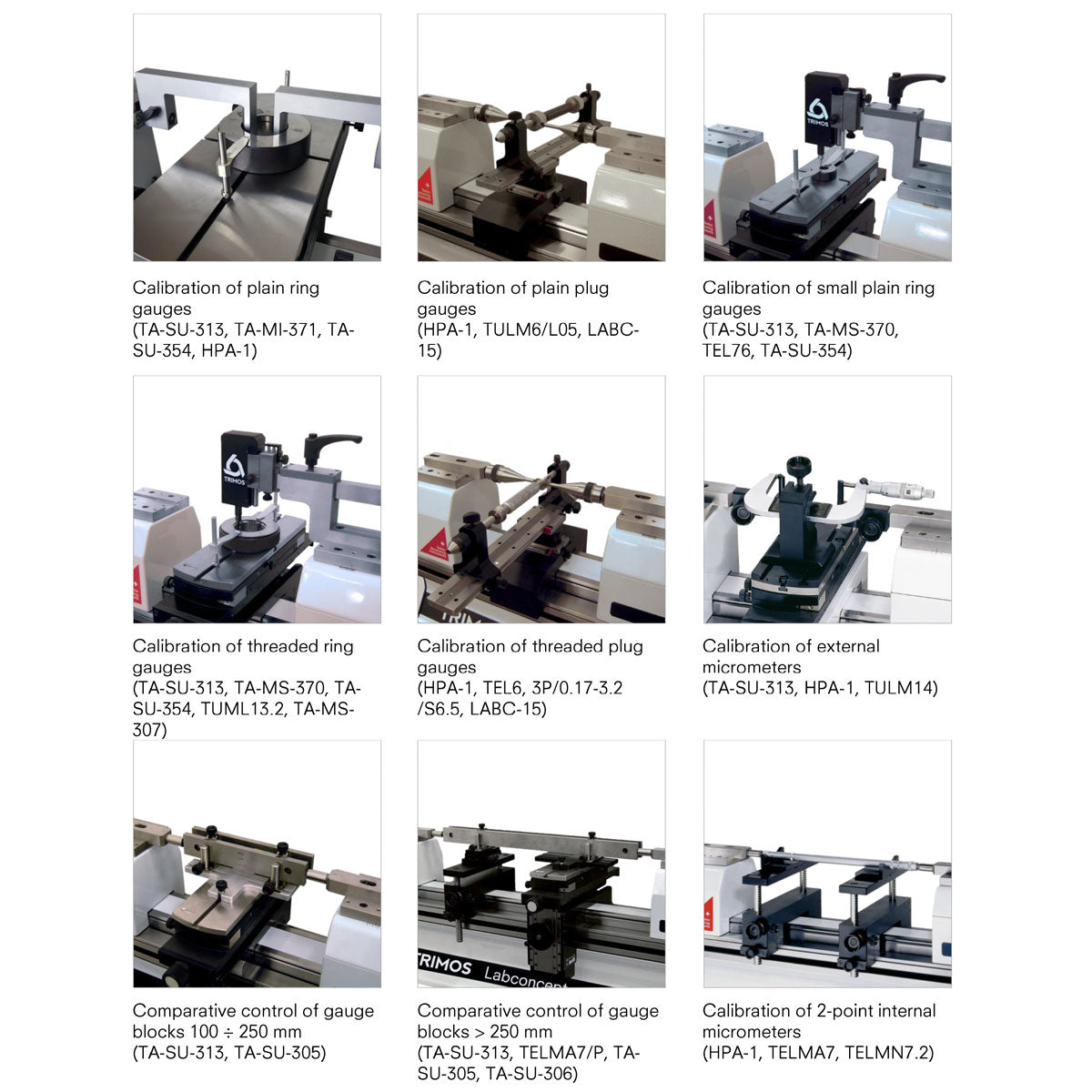

- The HC-line is designed for the calibration of fixed and variable dimension measuring equipment. The ergonomic design and reliability of these instruments, as well as their accuracy and ease of use, meet the most stringent requirements and increase the productivity of any laboratory.

The instruments are computer controlled. The exclusive WinDHI software makes it easy to perform all measurement functions. A temperature compensation system as well as a gage inspection software can be installed to complement the performance of the instrument.

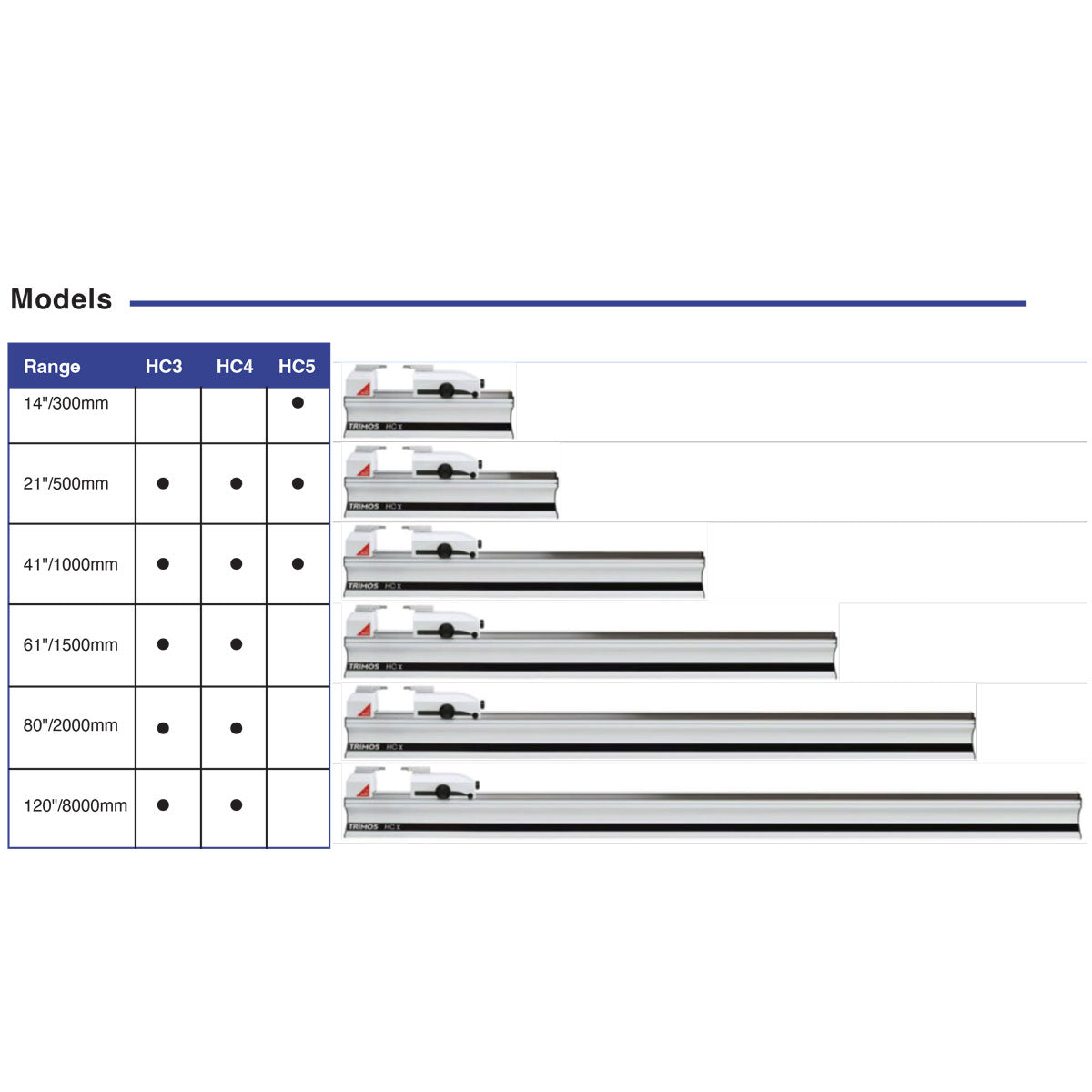

Instruments with a measuring range of 14”/300mm to 120”/2000mm are available, all manufactured in one piece. All measuring ranges are direct, i.e. the full measuring range is available without intermediate adjustment or recalibration.

  • Quick displacement of the measuring carriage
  • Adjustable force from - 1N to - 12N continuously
  • Electronic monitoring of the measuring force
  • Optical and acoustic indication of the measuring position
  • 0.000004”/0.11mm resolution• Windows 10 & 11 compatible
  • Wide range of display options
  • Complies with the requirements of the ISO 9000 standard
    *Image shown for representational purposes only
Ships in 2-4 weeks

Get pricing, speak with an expert
Finance the Fowler Trimos HC5 - Calibrati...
Apply Online - Get Approved in 1 hr
  • Additional Details & Features
  • Documents/Downloads

Model: 300
Measuring Range: 14"/350mm
Maximum Permissible, B MPE: 10.1 + L/2000 µm
Repeatability, R MPE (2s): 0.0000002"/0.05 µm
Maximum Resolution: 0.0000001"/0.00001mm
Adjustable Measuring Force: 0.3 / ²'³ 0.5 / ²'³ 1 - 12 ³)
Maximum Travel Speed: 4000 mm/s
Operating Temperature: 50 - 104°F / +10°C - + 40°C
Relative Humidity: 20 - 80 %
Weight: 171 lbs./78 kg.


1.) Values determined at a temperature of 20 ± 0.2°C and a relative humidity of 50 ± 5 %
2.) With electronic probe
3.) Force display in the WinDHI software window only


Download the Item Manual
