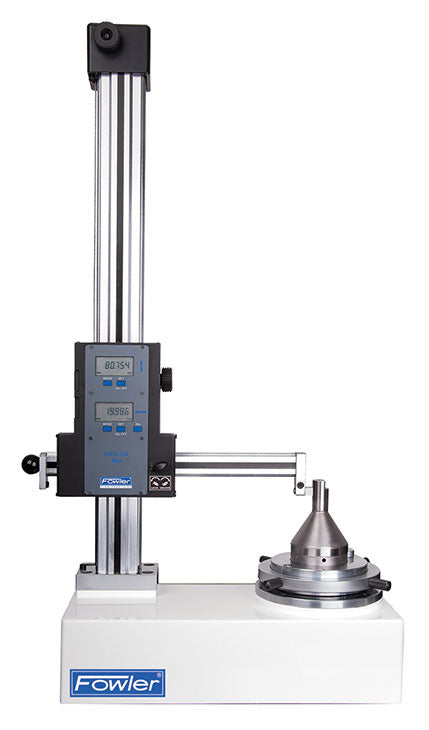

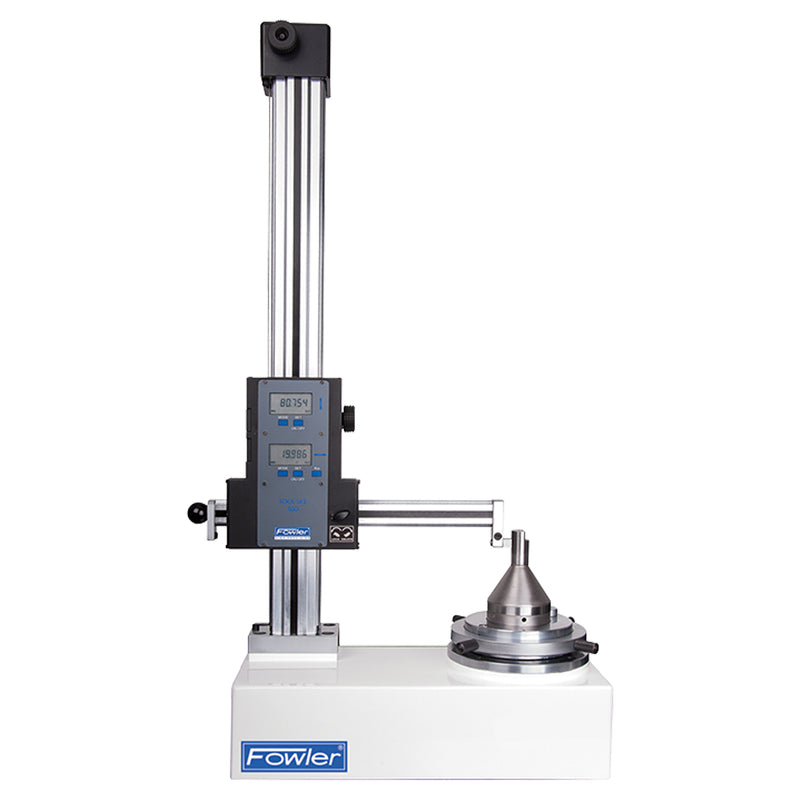

Fowler Tool Presetter

$16,500.00 Sale Price
$21,511.00 list price

Quick checking of heights and diameters (radius) of all kinds of tools such as ISO, BT, HSK, VDIA etc. is guaranteed by a fixed precise steel measuring column with displacement devices in coordinates (X/Z) and constant measuring force.

Tool Holding Spindle

Tool presetter is supplied with high precision imported ball cage bearing (Grade 0). High precision spindle has:

  • Less than 2 µm concentricity error
  • No need of additional setting master due to integrated calibration point on the spindle for both axis

Additional Features

  • Counter balanced measuring carriage
  • Constant measuring force of horizontal measuring arm ensures high accuracy
  • High precision Sylvac measuring system

Display

  • MIN/MAX function
  • 2 reference indications
  • Measuring value display
  • Function for PRESET value and TOLERANCE value inputs
  • Tolerance mode indication
  • Measuring unit (MM/INCH) indication
  • Low battery warning indication
  • Display hold
  • Output - OPTO RS232 for each axis
  • Floating zero function
  • Carbide measuring insert
  • Accepts measuring probes with 8mm shank
SKU: 541883000
Ships in 2-4 weeks


* Sale pricing & same-day shipping applies only to in-stock items

Specifications
Range: 15.7"/400mm
Diameter/Radius Measurement: 11.8"/5.9" (300/150mm)
Presetter Accuracy: Z axis = 0.00078"/0.02mm
Y axis = 0.00039"/0.01mm
Spindle Runout: ≤ 0.00008"/0.002mm
Resolution: 0.00005"/0.001mm
Weight (Approx.): 75 lbs. / 34 kg.
Spindle Taper: ISO 50
Data Output: OPTO RS232 Compatible (2)
Battery: (2) Lithium, 3V type CR2032, life 4000 hts. approx.
