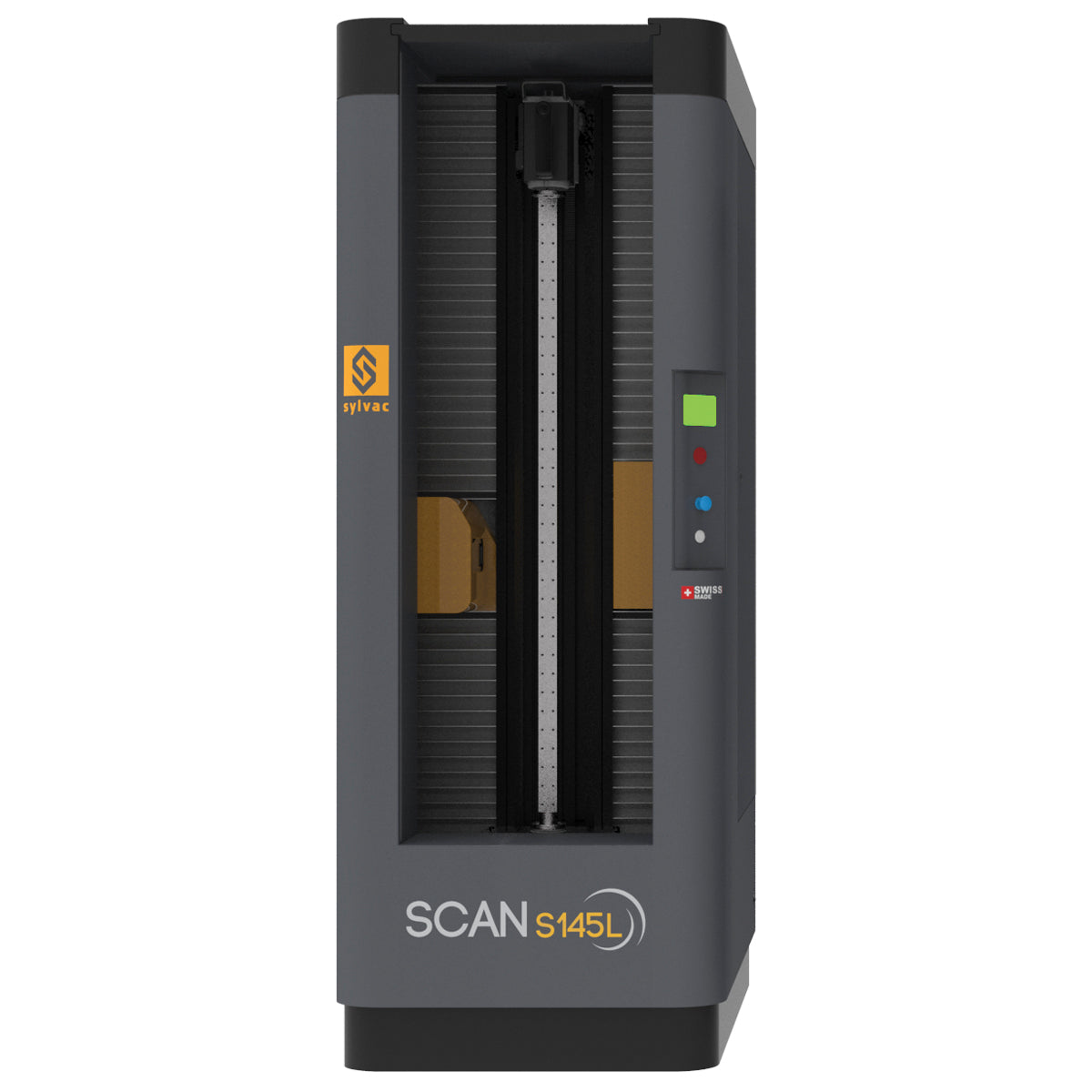

Fowler-Sylvac SCAN S145L

SKU: 549021455

The Fowler Sylvac SCAN S145 and S145L are suitable for larger parts up to 5.7"/145mm diameter and 50.3"/1280mm length. They come equipped with the advanced Reflex-Scan+ software and are automation ready.

Features:

  • Part measurement up to 145mm diameter and up to 1280mm length
  • Fast, accurate, repeatable, reliable measurements of cylindrical parts
  • Full part measurement in just a few seconds
  • Easy to use software for operator use on the shop floor
  • One click measurement, part recognition, auto measure
  • Advanced and custom software features for complex parts
  • Offline software and programming from CAD
  • Full measurement reports and SPC compatible
  • Automation ready
  • Motorized tailstock
  • Reduce inspection time, reduced scrap and save money!

Includes:

  • Instrument according to technical specifications
  • 2 Adapters for Morse 2, rotating center 42mm 54-902-638-0 and drive center 54-902-621-0
  • Computer with screen, keyboard and mouse
  • Windows multiligual operating system
  • Sylvac Reflex SCAN+ software
  • Plastiform case for optical machine
  • Manual
Ships in 2-4 weeks

Get pricing, speak with an expert
Finance the Fowler-Sylvac SCAN S145L
Apply Online - Get Approved in 1 hr
  • Additional Details & Features
  • Videos

Measuring Range:5.7"/145mm Diameter, 50.3"/1280mm Length
Resolution:0.000001"/0.0001mm
Accuracy:(1.5 + D/100µm) Diameter / (4 + L/200) Length
Repeatability:0.5 Diameter / 1.0µm Length
Holding Capacity: 10"/254mm Diameter, 50.3"/1280mm Length
Rotary Headstock:Yes
Maximum Part Weight:220 lbs./100 kg.
Machine Weight: 1430 lbs./650 kg.
