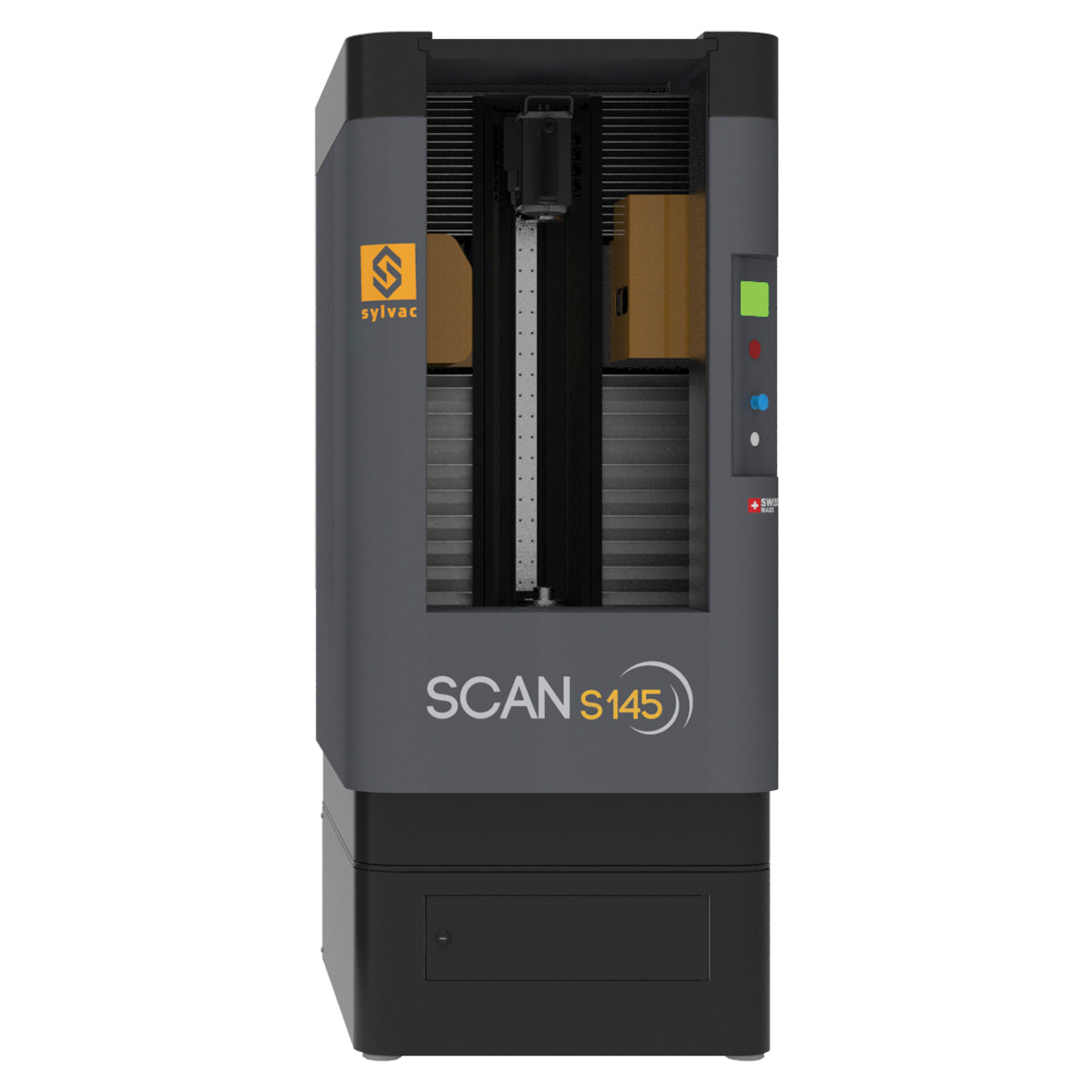

Fowler-Sylvac SCAN S145

SKU: 549021450

The Fowler Sylvac SCAN S145 and S145L are suitable for larger parts up to 5.7"/145mm diameter and 50.3"/1280mm length. They come equipped with the advanced Reflex-Scan+ software and are automation ready.

Features:
• Part measurement up to 145mm diameter and up to 1280mm length
• Fast, accurate, repeatable, reliable measurements of cylindrical parts• Full part measurement in just a few seconds
• Easy to use software for operator use on the shop floor
• One click measurement, part recognition, auto measure
• Advanced and custom software features for complex parts
• Offline software and programming from CAD
• Full measurement reports and SPC compatible
• Automation ready• Motorized tailstock
• Reduce inspection time, reduced scrap and save money!

Includes:
• Instrument according to technical specifications
• 2 Adapters for Morse 2, rotating center 42mm 54-902-638-0 and drive center 54-902-621-0
• Computer with screen, keyboard and mouse
• Windows multilingual operating system
• Sylvac Reflex SCAN+ software
• Plastiform case for optical machines
• Manual

Ships in 2-4 weeks

Get pricing, speak with an expert
Finance the Fowler-Sylvac SCAN S145
Apply Online - Get Approved in 1 hr
  • Additional Details & Features
  • Videos
  • Documents/Downloads

Measuring Range:5.7"/145mm Diameter, 24.2"/615mm Length
Resolution:0.000001"/0.0001mm
Accuracy:(1.5 + D/100µm) Diameter / (4 + L/200) Length
Repeatability:0.5 Diameter / 1.0µm Length
Holding Capacity: 10"/254mm Diameter, 24.2"/615mm Length
Rotary Headstock:Yes
Maximum Part Weight:220 lbs./100 kg.
Machine Weight: 1166 lbs./530 kg.


https://www.youtube.com/embed/-xNWg3_2RcA
