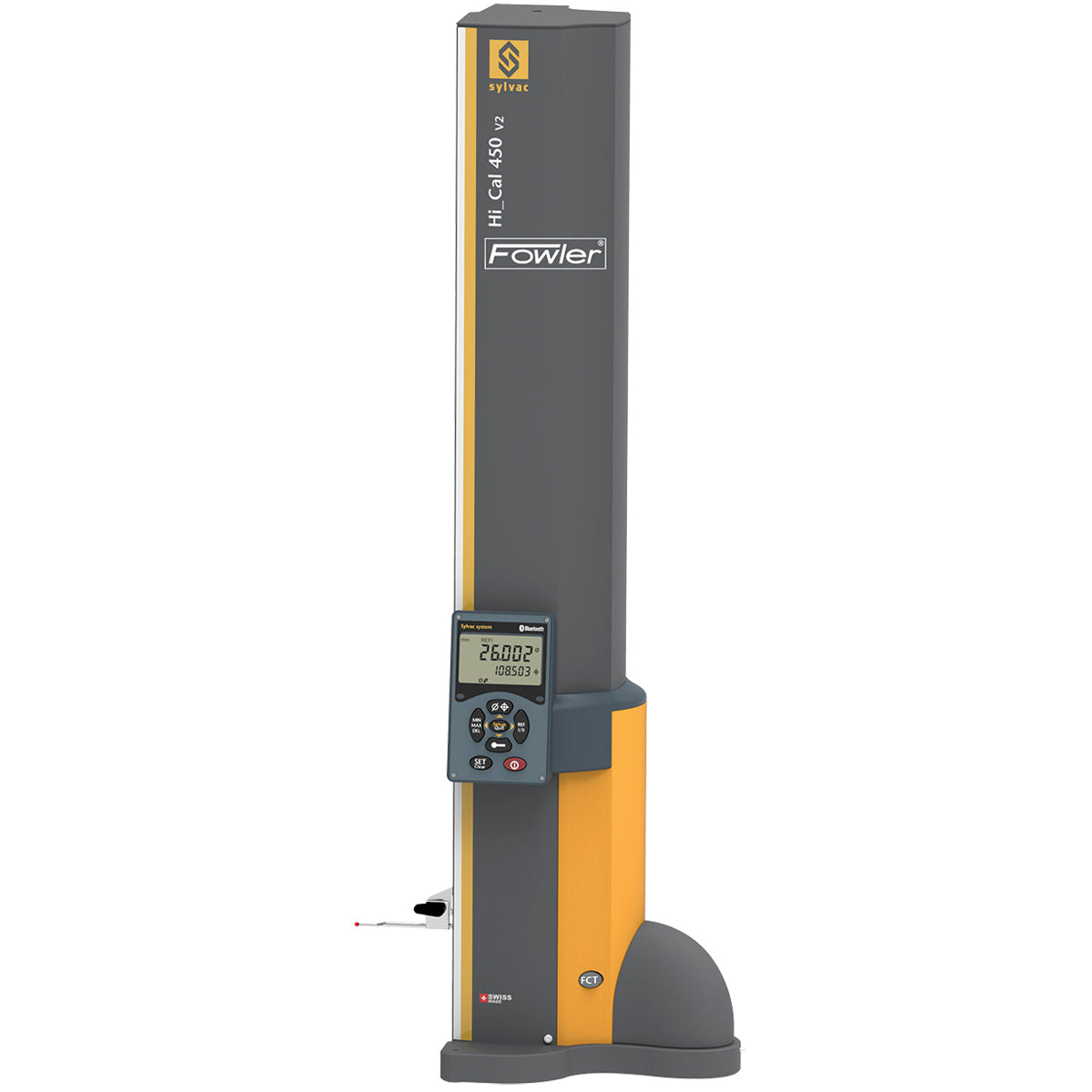

Fowler Sylvac 17.5"/450mm BLUETOOTH Hi_CAL Electronic Height Gage

SKU: 54931450BT
$7,554.76
$7,554.76
Features:
• Quick, easy computer recorded measurements
• Extra low measuring force, from 0.2N
• Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability
• Excellent repeatability thanks to the motorized carriage
• High reliability
• Bluetooth, USB and RS232 data outputs
• Battery life: 40 hours rechargeable during operation
• Touch sensitive probe speed for easy operation
• Base with small footprint
• Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificates

ONLY 3 LEFT

Ships Today if Ordered by 2PM EST*

*excluding weekends/holidays
  • Additional Details & Features
  • Videos
  • Documents/Downloads

Range:  17.5"/450mm
Application Range:  18.5"/0-470mm
Maximum Error (µm): 2.0 + L/200
Repeatability:  2µm
Resolution:  0.00005"/0.001mm
Velocity (mm/sec.):  50/100
Measuring Force:  0.2 - 0.3 Newtons
Self-Contained Use:  Approximately 40 hours
Overall Height:  26.7"/679mm
Weight:  15 lb/6.8 kg
S_Connect:  USB/mini USB/RS-232

Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed




https://www.youtube.com/embed/videoseries?list=PLDCVL2ZK4ygMOttMo3UL4S3T8BYNFt5ag


the Manual
