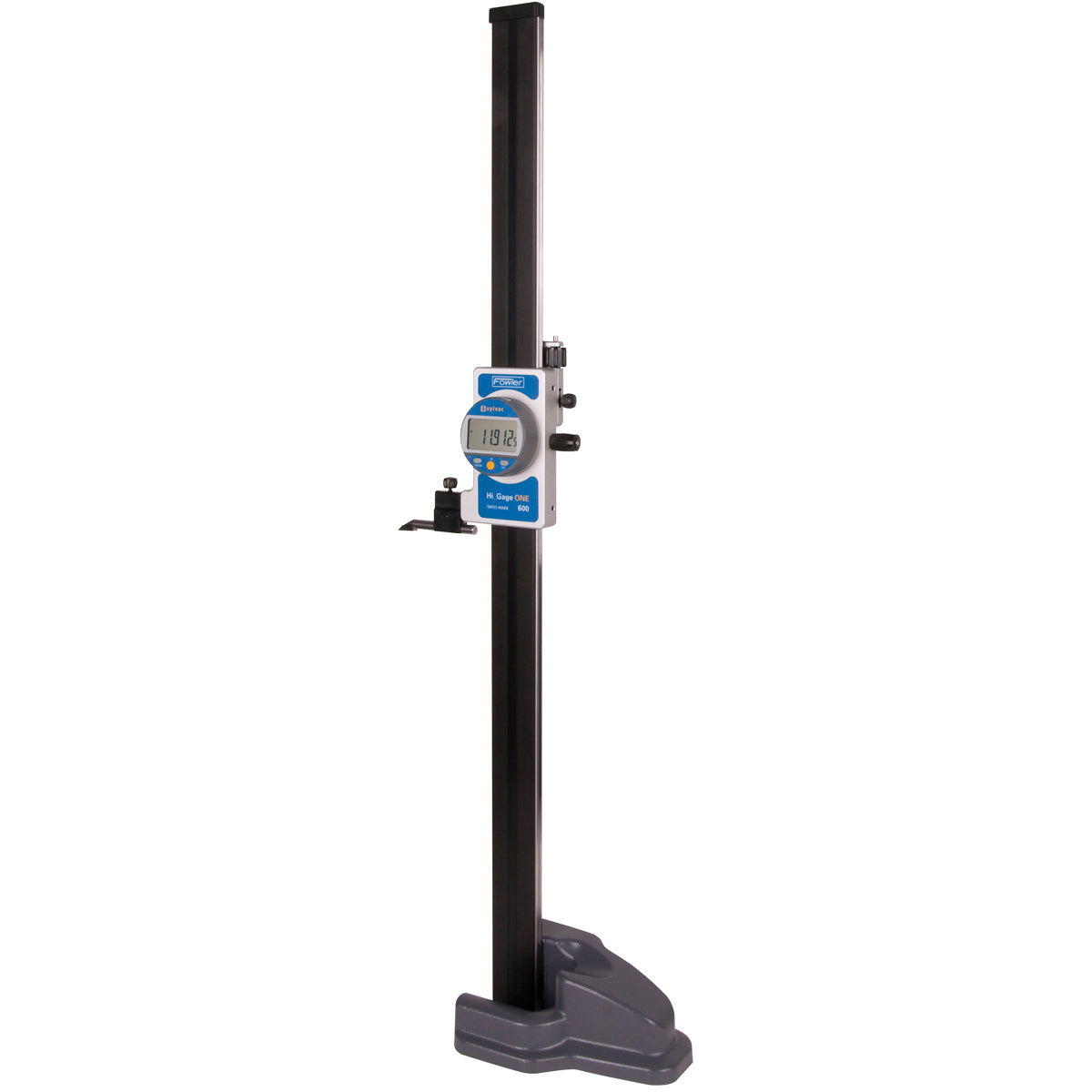

Fowler-Sylvac 0-16"/400mm Hi_Gage One Electronic Height Gage
SKU: 542120161
$1,853.00
Fowler-Sylvac's new Hi_Gage One Electronic Height Gage features a proven electronic scale that is not affected by oil, dust, chips or shock.
• Scale not affected by oil, dust, chips, magnetism, shock, etc.• Direct RS-232 output• The Sylvac measuring system is exceptionally fast (60"per second traverse) and is the most reliable and maintenance free system ever created for measurement.• Customizable with free software• True inch/metric conversion• Accuracy: .002"/50µm• Resolution: .0005"/.01mm• Repeatability: .0004"/10µm• Base Size: 5.6" wide X 6.8" length• 8mm probe shank• Probe size memory and directional sensing allow diameter and slot width measurement.
*Image shown for representational purposes only
• Scale not affected by oil, dust, chips, magnetism, shock, etc.• Direct RS-232 output• The Sylvac measuring system is exceptionally fast (60"per second traverse) and is the most reliable and maintenance free system ever created for measurement.• Customizable with free software• True inch/metric conversion• Accuracy: .002"/50µm• Resolution: .0005"/.01mm• Repeatability: .0004"/10µm• Base Size: 5.6" wide X 6.8" length• 8mm probe shank• Probe size memory and directional sensing allow diameter and slot width measurement.
*Image shown for representational purposes only
Ships in 2-4 weeks
