Fowler Metric Radius Gage with 34 leaves

SKU: 524701100
$47.00 Sale Price
$50.00 list price

Fowler's Radius Gage, made of finely finished high quality steel, is used by layout men, tool and diemakers, screw machine operators, machinists, pattern-makers and mechanics.

• Features an eccentric mounting for clearance between leaf and case when gage is opened; each leaf stamped with radius size.
• Leaves shaped for use in any position or angle to measure fillets and radii in corners or against shoulders. Held securely in desired position by a locking device.
• Use to lay out and check radii of tools, dies, patterns, etc.

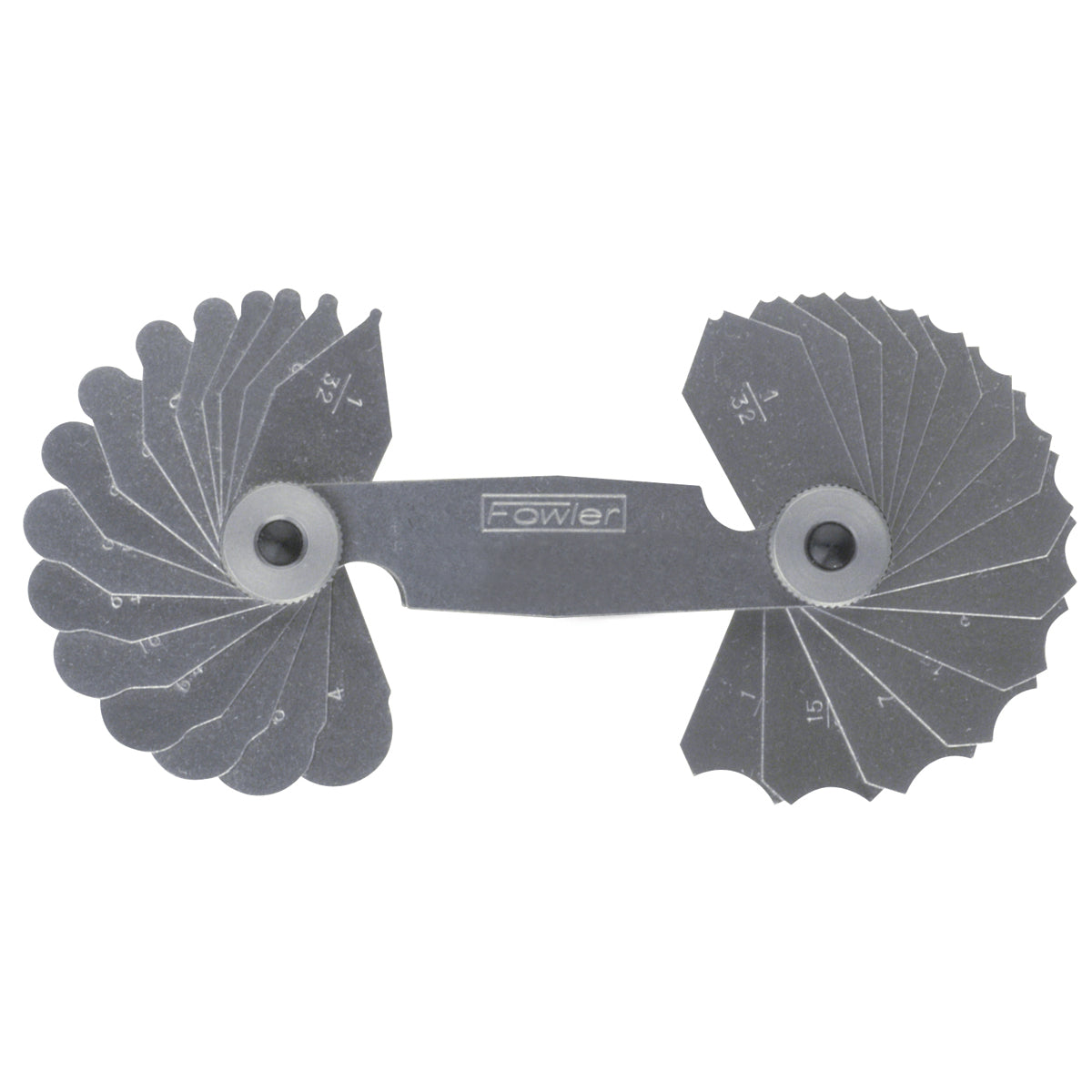

*Image shown for representational purposes only
  • Additional Details & Features

Number of Leaves:34
Range:1mm - 7mm (1mm, 1.25mm, 1.5mm, 1.75mm, 2mm, 2.25mm, 2.5mm, 2.75mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm), 17 male and 17 female
