Fowler Bowers Air Gaging - Air1 - Single Channel

SKU: 544700000
$2,499.99
$2,499.99

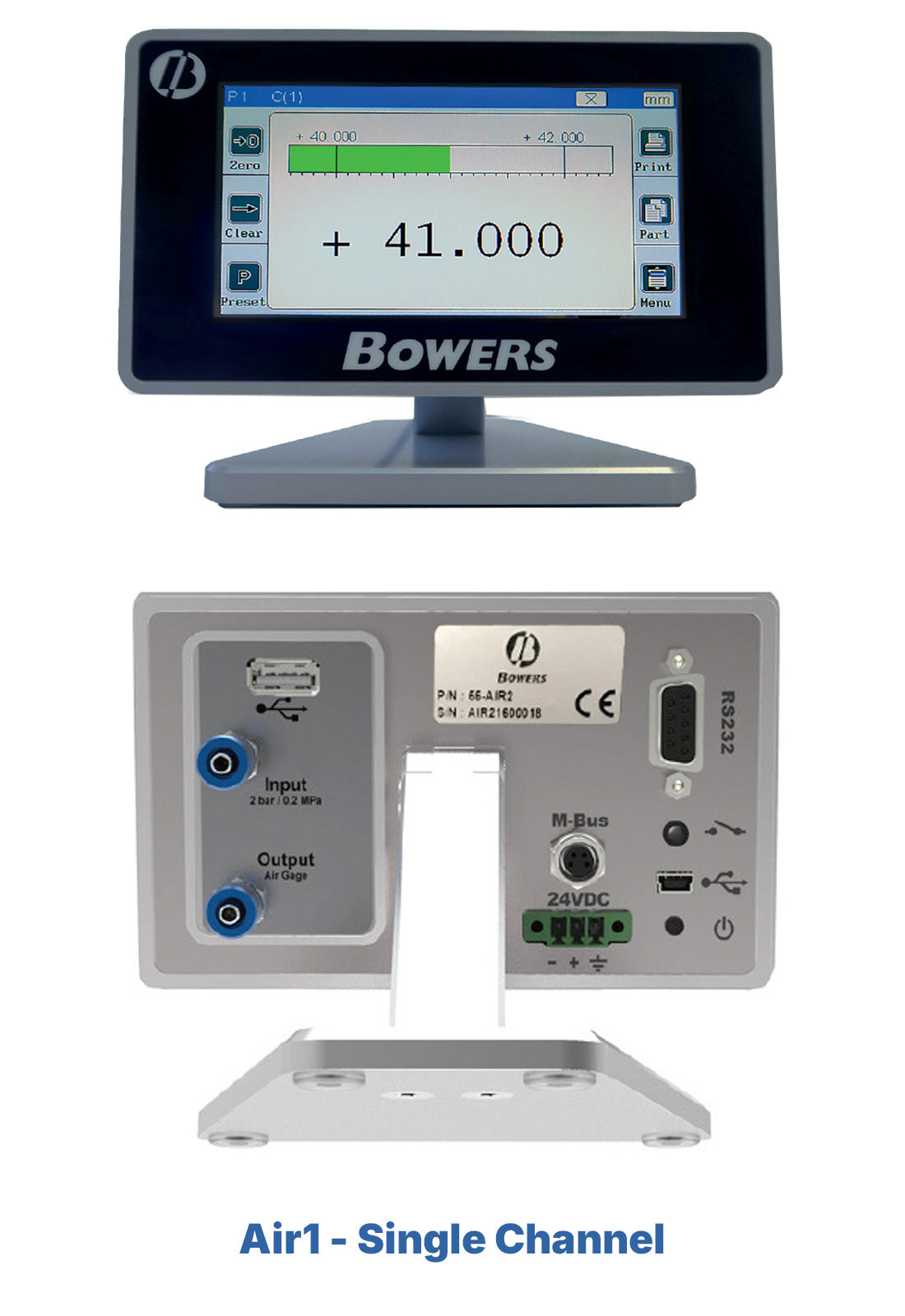

The Fowler Bowers Air1 and Air2 displays combine modern design with user-friendly functions, such as its touchscreen for enhanced usability. For added precision when measuring parts, the gages offer three points of calibration – minimum, maximum, and mid - allowing accurate linearity on any factory floor. Not only are they robust in their capabilities, but also resilient to harsh conditions due to no moving components; all while taking up a minimal amount of space in your workspace! Plus, it's easy to integrate into existing systems thanks to convenient connectivity options designed specifically to streamline setup. Simple, QR Code set up - the QR code is easily pre-loaded with the correct measurements and tolerances. The QR scanner plugs straight into the display, no external hardware is needed.
Ships in 2-4 weeks
  • Additional Details & Features
  • Videos
  • Documents/Downloads
  • TFT color touchscreen display 4.3", resolution 480 x 272
  • Static or dynamic measurements (Max, Min, Max-Min, Average, Median)
  • Analog or digital display
  • 1 or 2 measurement configurations (2 characteristics)
  • Relative or absolute display • Display resolution (up to 0.1μm)
  • Metric (mm or μm) or Imperial (inches) measurement or DMS
  • Classification/Grading: Up to 16 classes with color representation

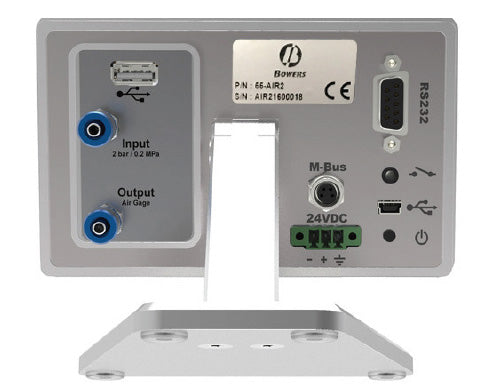

  • RS232 port for communication with a PC
  • USB port for communication and/or power supply
  • USB stick for data saving on a CSV file

https://www.youtube.com/watch?v=jI7764G5Izw
https://www.youtube.com/watch?v=eE7jCNbXsBg

Fowler Bowers Air Gaging Brochure
