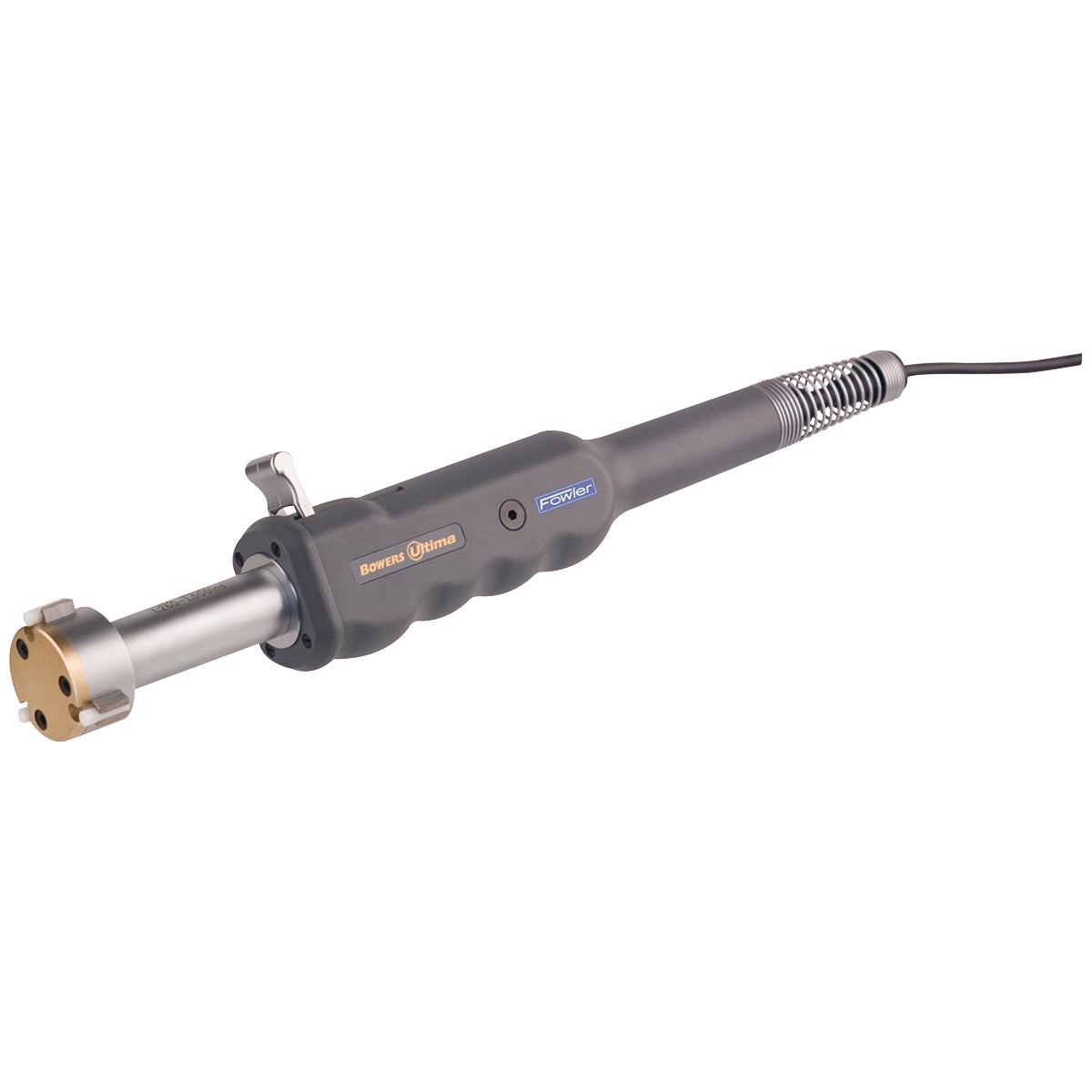

Fowler Bowers 6.3 - 6.69"/160 - 170mm Ultima Bore Gaging System, Individual Head
SKU: 545652290
$2,207.00
Featuring Bowers' historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower's famous Super-Bore line of bore gages and accessories.
Special features:• Greater accuracy• Utilizes Bowers' "FASTFIT" measuring heads• Setting rings manufactured to DIN Standard 2250 part 2.• Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement.• All 2-6mm sets supplied as standard with depth-stop.
Features:• Measuring range:.078"-12.3"/2-310mm• Resolution: .00001"/.0001mm• Constant spring pressure ensures top repeatability.• Positive feel when heads self-centre in the bore.• Fastfit measuring heads for rapid replacement.• UKAS certificates standard for all measuring heads.• UKAS certificates standard for all setting rings.• Ceramic anvils on heads above .472"/12mm• Blind-bore measurement standard above .472"/12mm• Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station.• The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.).• Depth stops available for all heads• Extensions available for deep bore measurement
*Image shown for representational purposes only
Special features:• Greater accuracy• Utilizes Bowers' "FASTFIT" measuring heads• Setting rings manufactured to DIN Standard 2250 part 2.• Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement.• All 2-6mm sets supplied as standard with depth-stop.
Features:• Measuring range:.078"-12.3"/2-310mm• Resolution: .00001"/.0001mm• Constant spring pressure ensures top repeatability.• Positive feel when heads self-centre in the bore.• Fastfit measuring heads for rapid replacement.• UKAS certificates standard for all measuring heads.• UKAS certificates standard for all setting rings.• Ceramic anvils on heads above .472"/12mm• Blind-bore measurement standard above .472"/12mm• Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station.• The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.).• Depth stops available for all heads• Extensions available for deep bore measurement
*Image shown for representational purposes only
Ships in 2-4 weeks
