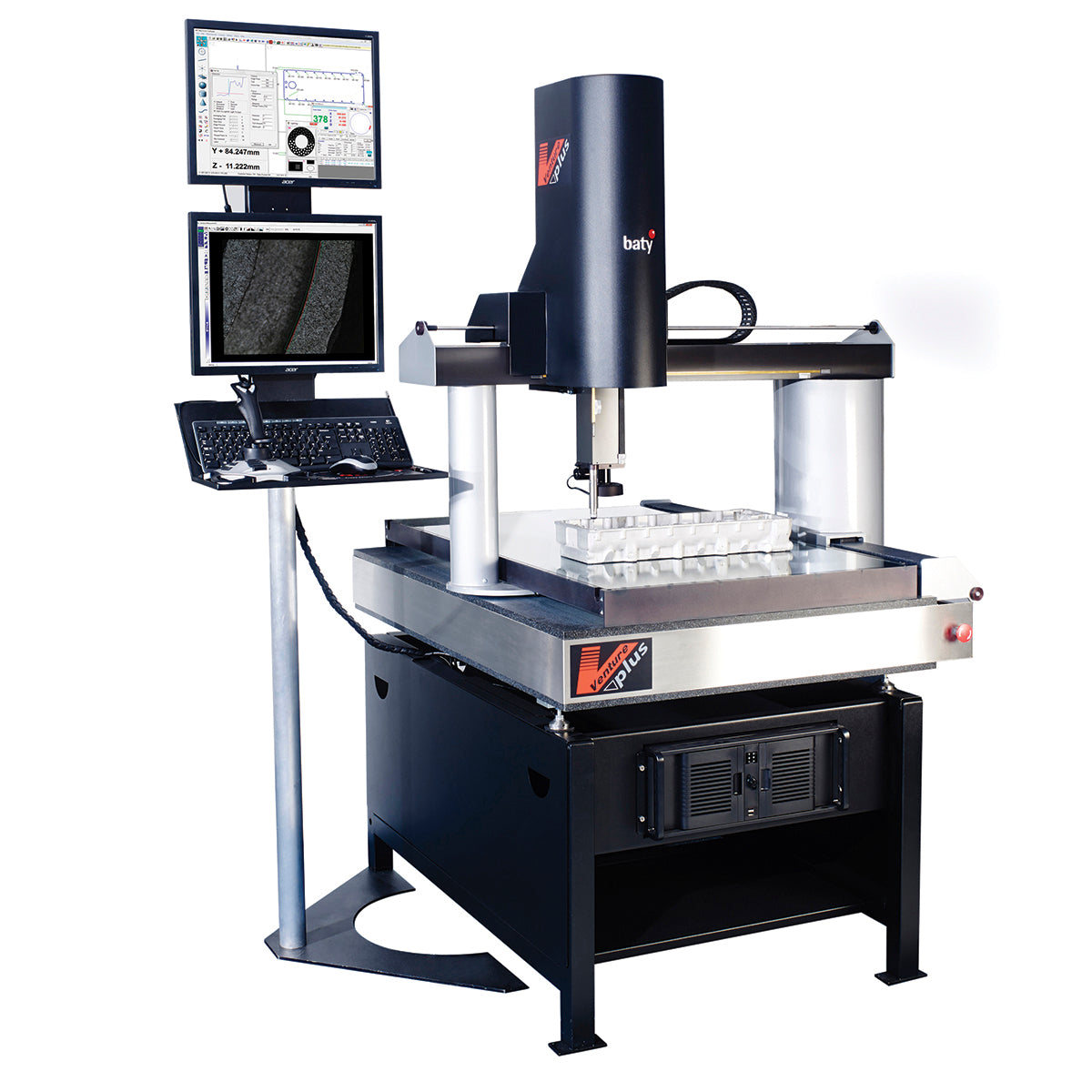

Fowler Baty Venture PLUS - 25.2"/640mm x 35.4"/900mm x 9.8"/250mm

Fowler Baty Venture PLUS - 25.2"/640mm x 11.2"/600mm x 9.8"/250mm The Venture Plus range includes all of the standard Venture features with a little more... measuring range. Large Measurement Volume The Venture PLUS is available in fourmodels: 54-303-646-0 25.2"/640mm x 11.2"/600mm x 9.8"/250mm measuring range 54-303-649-0 25.2"/640mm x 35.4"/900mm x 9.8"/250mm measuring range 54-303-110-0 39.4"/1000mm x 39.4"/1000mm x 15.7"/400mm measuring range 54-303-150-0 39.4"/1000mm x 59"/1500mm x 15.7"/400mm measuring range The bridge type construction is all aluminum resulting in low inertia and low thermal mass. Air bearings are used on all axes and a granite Y beam is used for increased accuracy. This ensures that the machine will expand and ­contract uniformly with temperature changes ensuring minimal distortion and subsequent errors. Ambient temperature can be compensated for ­within the Fusion software making the Venture PLUS ideal for use on the shop floor. Co
