Fowler Baty SM300 - GMR Vertical Optical Comparator with Geometric Readout

Fowler Baty SM300 - GMR Vertical Optical Comparator with Geometric Readout - 53-900-300-0

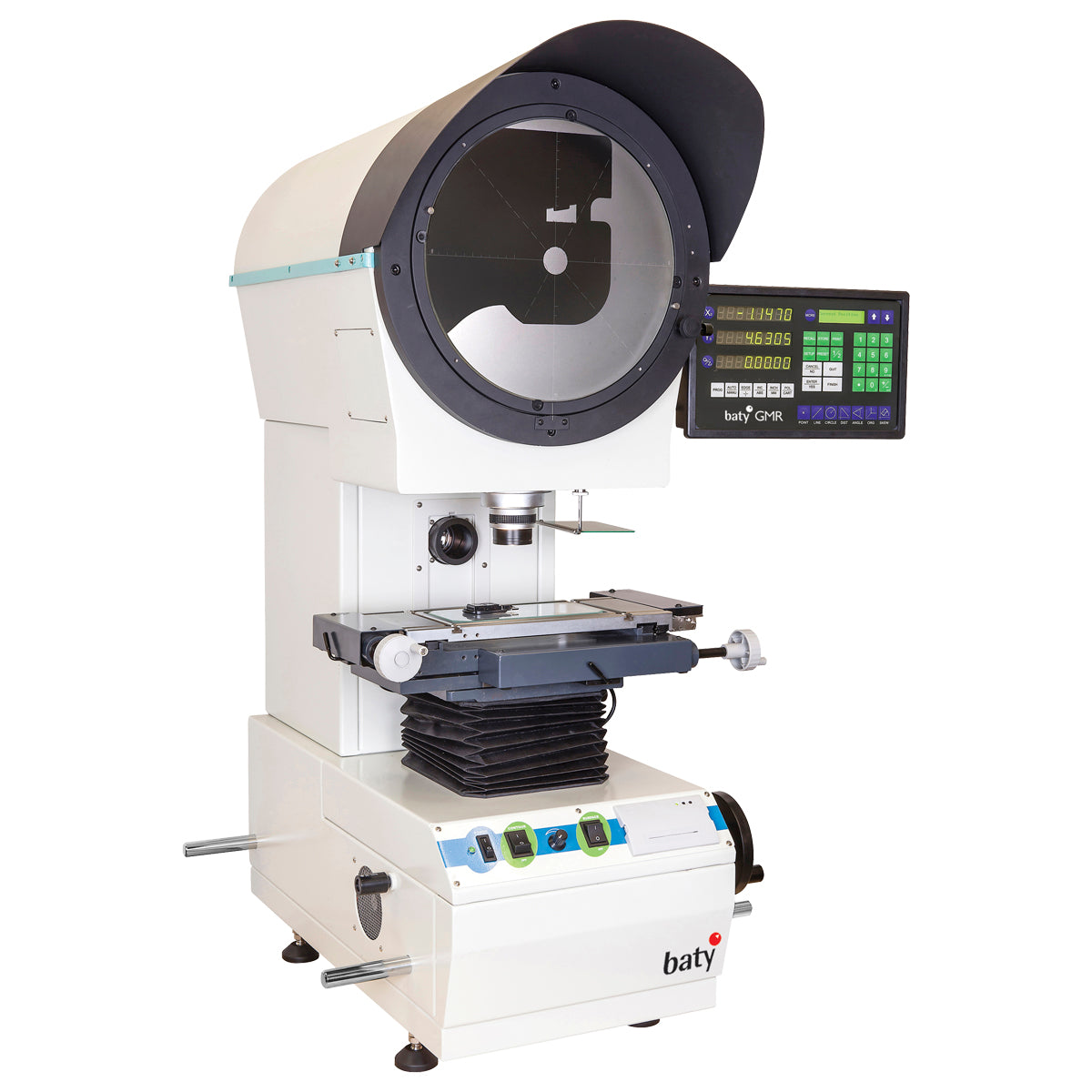

The Fowler Baty 12"/300mm screen vertical light path comparator with multi-function readout unit and printer. Robust design with full geometric measuring functionality ideal for the shop floor.

Features

• Top quality profile projector highly versatile and easy to operate
• Large travel range 150mm x 50mm (6”x 2”) as standard
• Linear scale stage with 0.0005mm resolution
• Fine ground glass screen for clear image with cross hairs
• Screen complete with cross hair lines and chart clips
• Built-in profile and surface illumination
• 10x, 20x, 50x, 100x projection lenses available
• Display-readout unit GMR included in standard delivery

Available Options

• Projection lens 10x with half reflecting mirror
• Projection lens 20x with half reflecting mirror
• Projection lens 50x with half reflecting mirror
• Projection lens 100x with half reflecting mirror
• Rotary table 360º
• Swivel centre support
• Holder with clamp
• V-block with clamp

Optical Comparator Type - SM300

Magnification 10x20x 50x 100x

View Field Diameter 30mm15mm6mm3mm

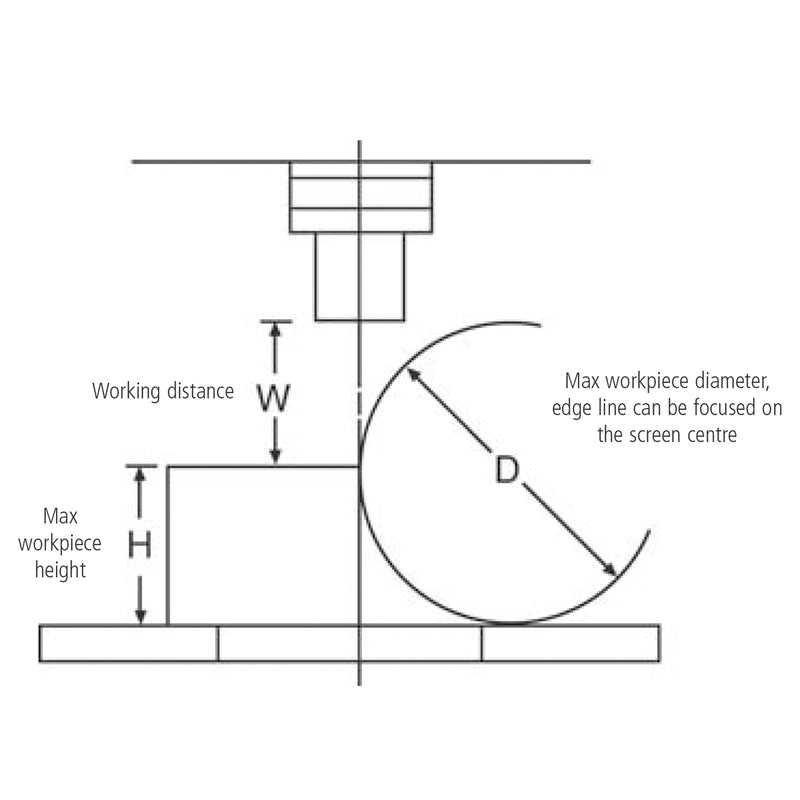

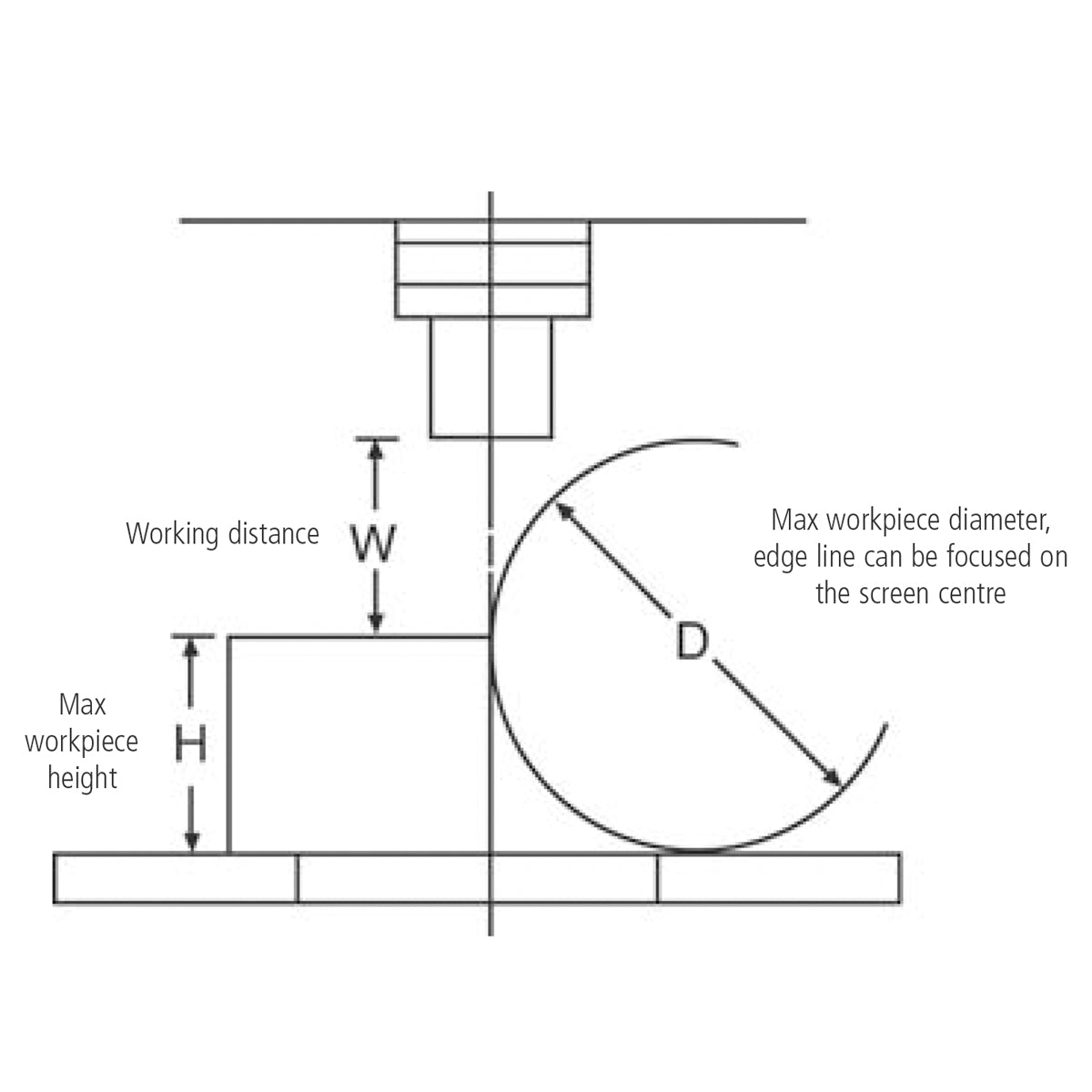

Working Distance 77.7mm44.3mm 24.5mm25.3

Maximum Workpiece Height 80mm80mm80mm 80mm

Maximum Workpiece Diameter160mm 130mm 55mm 60mm

edge line can be focused on screen centre

LENS SYSTEMS

Part Number Description

53-900-300-1 Magnification 10x

53-900-300-2 Magnification 20x

53-900-300-3 Magnification 50x

53-900-300-4 Magnification 100x

*Lens Systems must be ordered separately
