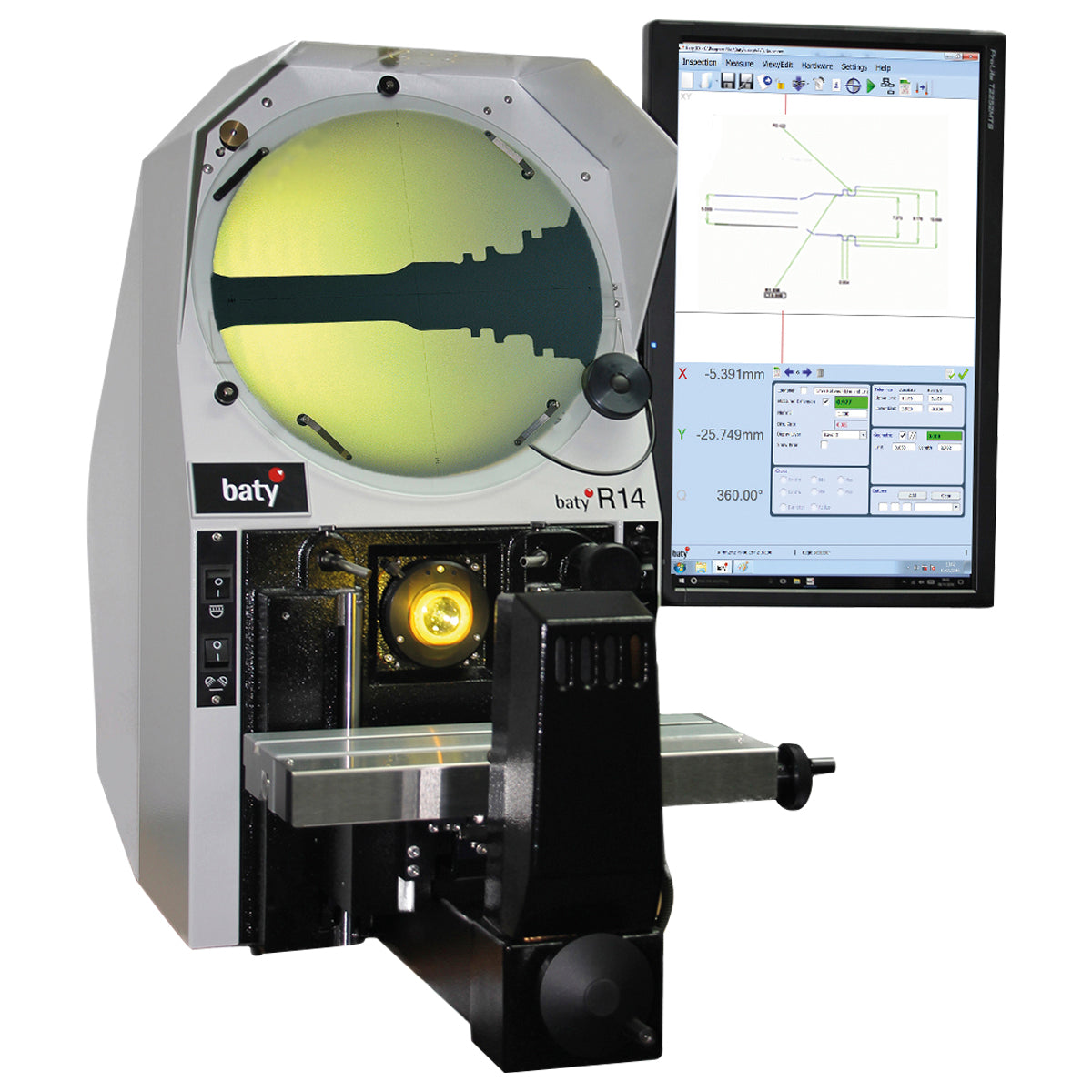

Fowler Baty R14 - GXL - E Horizontal Optical Comparator with DRO as GXL with added Optical Edge Sensor - 14" screen

The Fowler Baty R14 bench mount optical comparator with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range. Choice of digital readouts and optional automatic profile edge detection ensures that you can have the comparator that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments. Features • Basic XY or RA measurement ABS/INC mode, inch/metric conversion, geometric functions, tolerancing and optical edge sensor • 14"/340mm screen with 90º crosslines and chart clips • Profile illumination with halogen lamp and green filter • Lens magnification choice: 10x, 20x, 25x, 50x and 100x • Surface illumination (fiber optic) • Helix adjustment of light sourc
