Fowler Baty R14 - FT2 - E Horizontal Optical Comparator with 27" FUSION Touch Screen DRO, Optical Edge Sensor and 14" Screen 53-900-810-0
SKU: 539008100
Fowler Baty R14 - FT2 - E Horizontal Optical Comparator
with 27" FUSION Touch Screen DRO, Optical Edge Sensor and 14" Screen - 53-900-810-0
The Fowler Baty R14 bench mount optical comparator with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.
Choice of digital readouts and optional automatic profile edge detection ensures that you can have the comparator that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.
Features
• Windows based measuring with full reporting options, SPC, CAD import/export
• Optical edge sensor included
• 14"/340mm screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: 10x, 20x, 25x, 50x and 100x
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 7"/175mm x 4"/100mm
• Digital angle measurement to 1 minute
• 0.5 micron resolution
Available Options
• Internally fitted automatic edge sensor
• Swing over lamphouse to allow clear access to the workstage
• Various display units are available to suit individual requirements
• Cabinet stand ensures a solid base and provides storage
ProjectorType - R14
Magnification10x20x25x50x100x
Field of view 35181474
Working distance823824 1531
Maximum (half field) 10310380 45 96
Working dia. (full field)12010956 31 77
LENS SYSTEMS
Part NumberDescription
53-900-860-0Magnification 10x
53-900-861-0Magnification 20x
53-900-862-0Magnification 25x
53-900-863-0Magnification 50x
53-900-864-0Magnification 100x
*must be ordered separately

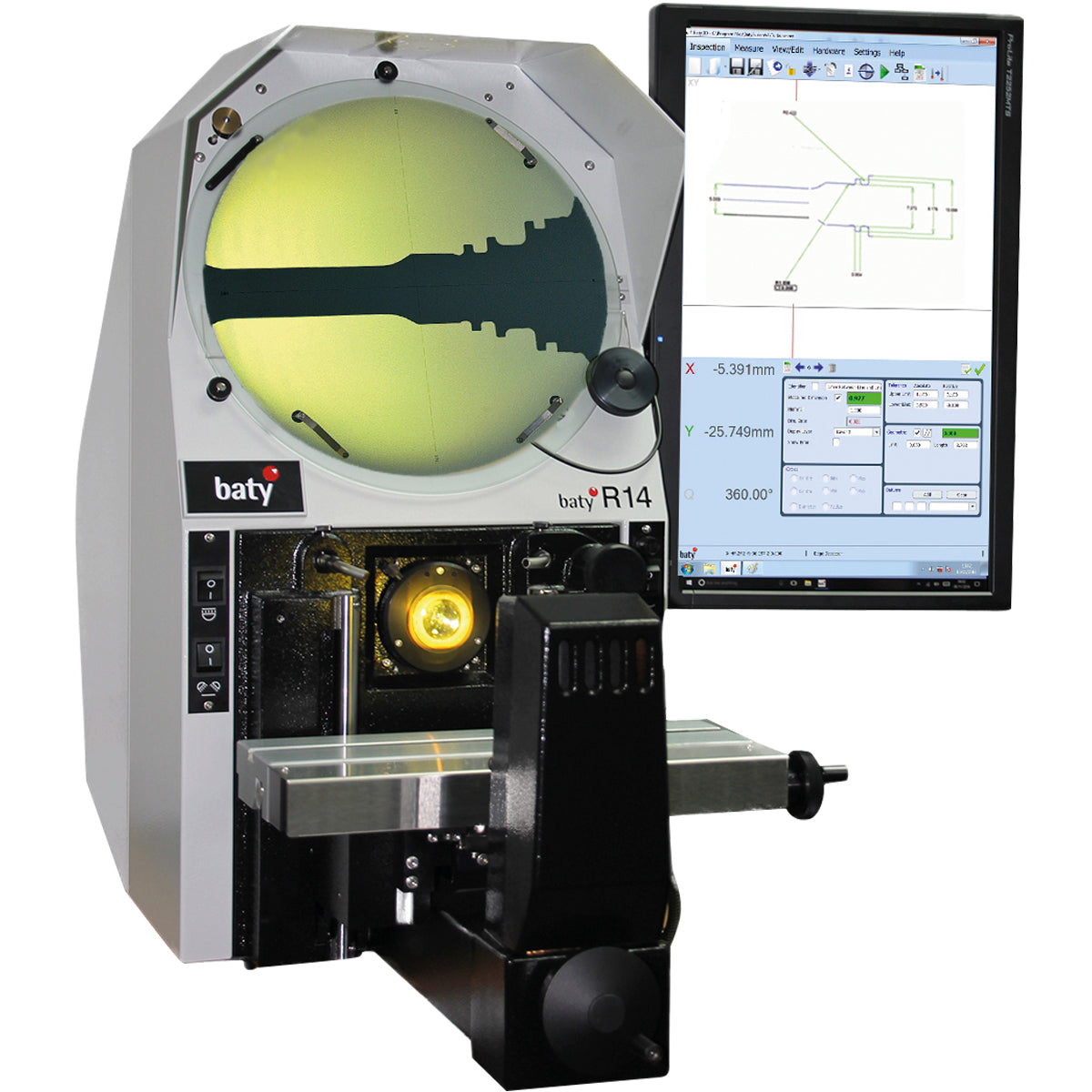

*Image shown for representational purposes only
with 27" FUSION Touch Screen DRO, Optical Edge Sensor and 14" Screen - 53-900-810-0
The Fowler Baty R14 bench mount optical comparator with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.
Choice of digital readouts and optional automatic profile edge detection ensures that you can have the comparator that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.
Features
• Windows based measuring with full reporting options, SPC, CAD import/export
• Optical edge sensor included
• 14"/340mm screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: 10x, 20x, 25x, 50x and 100x
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 7"/175mm x 4"/100mm
• Digital angle measurement to 1 minute
• 0.5 micron resolution
Available Options
• Internally fitted automatic edge sensor
• Swing over lamphouse to allow clear access to the workstage
• Various display units are available to suit individual requirements
• Cabinet stand ensures a solid base and provides storage
ProjectorType - R14
Magnification10x20x25x50x100x
Field of view 35181474
Working distance823824 1531
Maximum (half field) 10310380 45 96
Working dia. (full field)12010956 31 77
LENS SYSTEMS
Part NumberDescription
53-900-860-0Magnification 10x
53-900-861-0Magnification 20x
53-900-862-0Magnification 25x
53-900-863-0Magnification 50x
53-900-864-0Magnification 100x
*must be ordered separately
*Image shown for representational purposes only
Ships in 2-4 weeks
