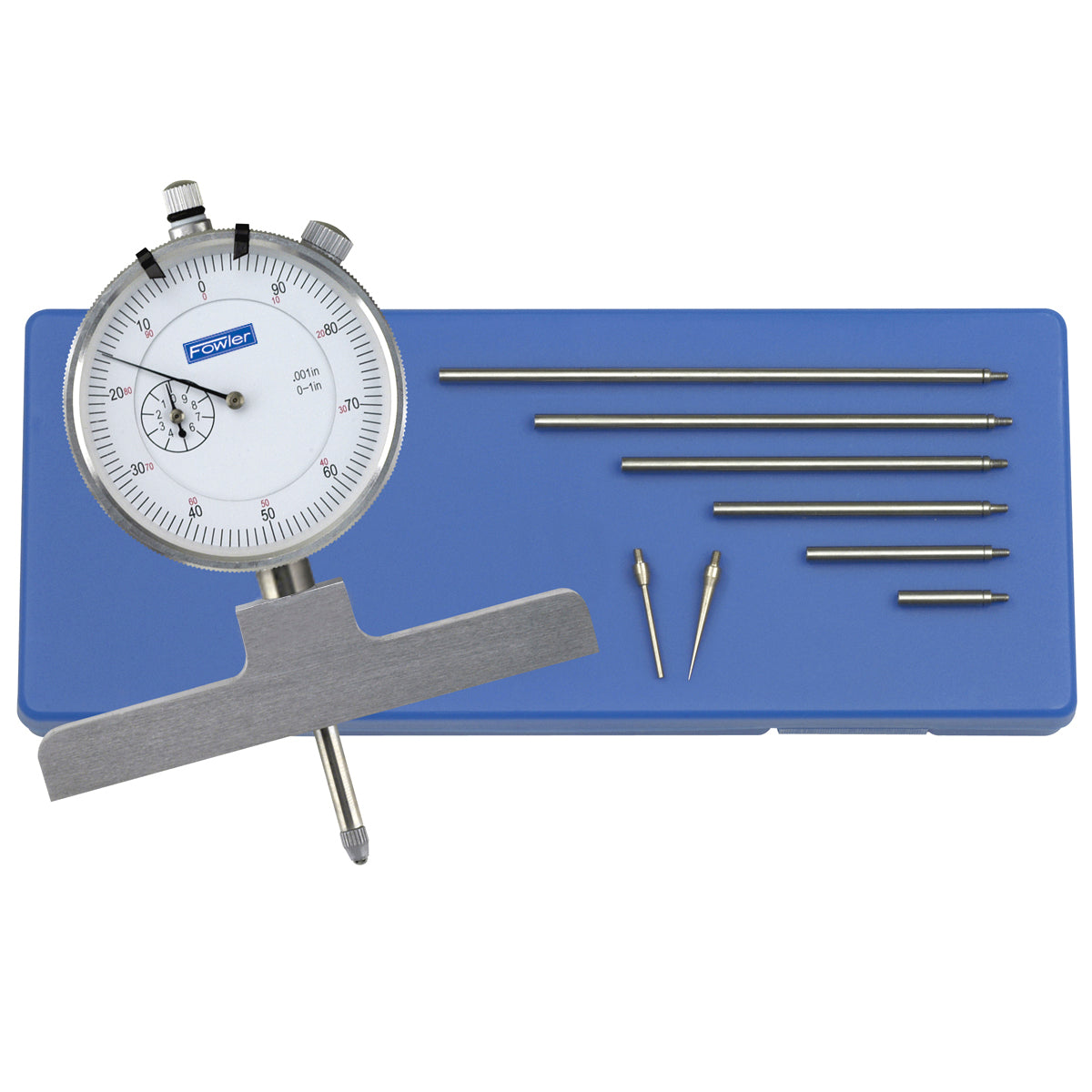

Fowler 0-22" X-Depth Dial Depth Gage

$146.00

Fowler's 0 - 22" Dial Depth Gages comes with six interchangeable rods with a 0 - 22" capacity, carbide contact point and 2 extra points for small applications. Provides rapid measurement of hole depths.

• Measurements automatically registered directly on dial face in 0.001" graduations
• The dial indicator can be easily adjusted for zero setting
• Graduation: 0.001"
• 0-1" travel indicator
• Accuracy of the dial indicator meets Federal specifications
• Rod extensions of 1", 2", 3", 4", 5" and 6" are included. Rods can be connected together for a full 0 - 22" capacity.
• Includes 2 extra points for small hole applications; one 0.078" dia. x 1" long and one needle point x 1" long
• Base is hardened steel, ground and microlapped for accuracy
• Standard 4 - 48 thread removable carbide ball contact point
• Rack spindle and pinions are hardened stainless steel to ensure long wear and continuing accuracy
• Includes shop hardened case

Order by 2PM EST for same-day shipping*
