Fowler 0-22" X-Depth 22-E Electronic Depth Gage

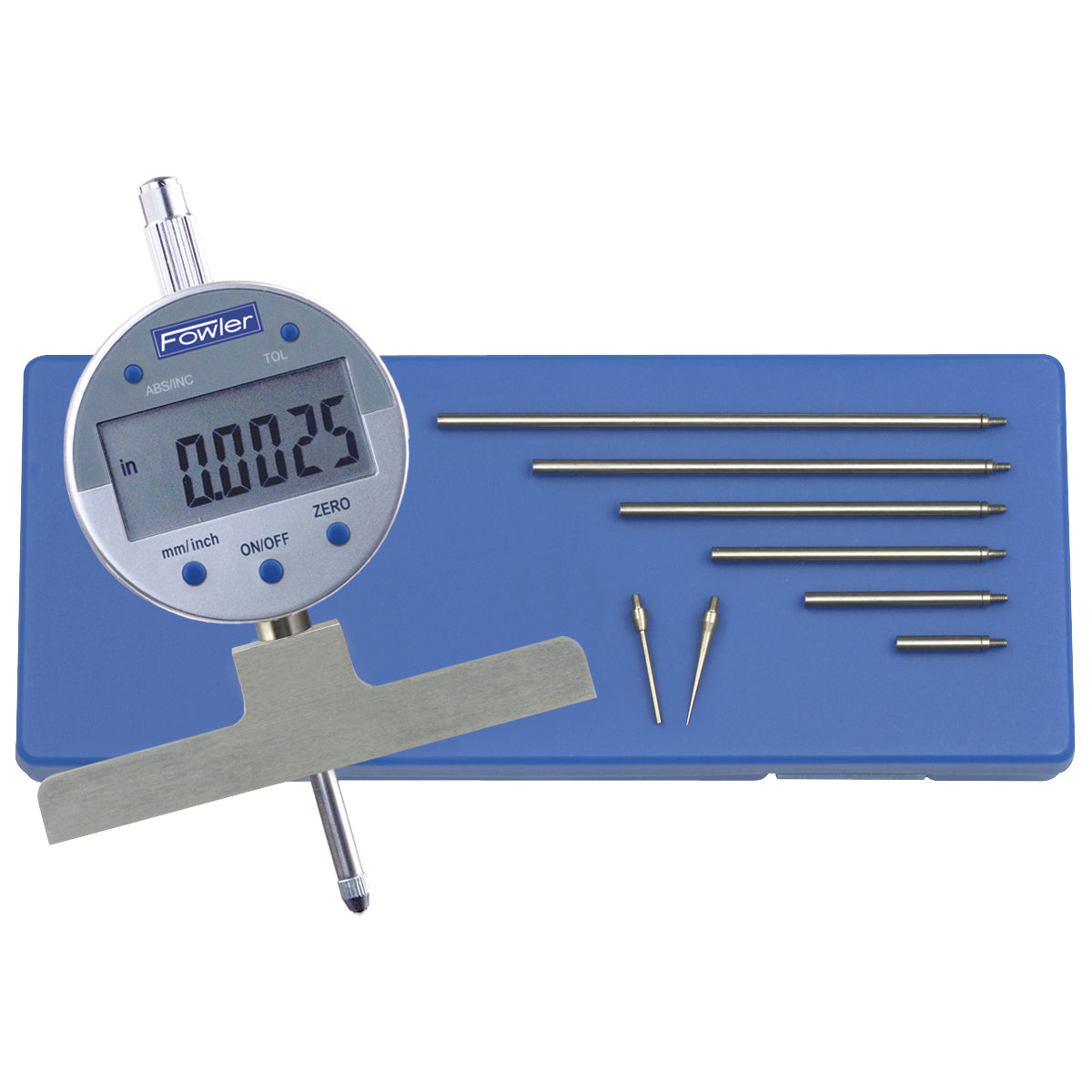

Fowler's Electronic Depth Gage comes with six interchangeable rods with a 0—22" capacity, carbide contact point and 2 extra points for small applications. Provides rapid electronic display measurement of hole depths.

Features:

• Rod extensions of 1", 2", 3", 4", 5" and 6" are included. Rods can be connected together for a full 0—22" capacity
• Includes 2 extra points for small hole applications; one 0.078" dia. x 1" long and one needle point x 1" long
• Base is hardened steel, ground and microlapped for accuracy
• Base Size: 4" x .630"
• Standard 4-48 thread removeable carbide ball contact point

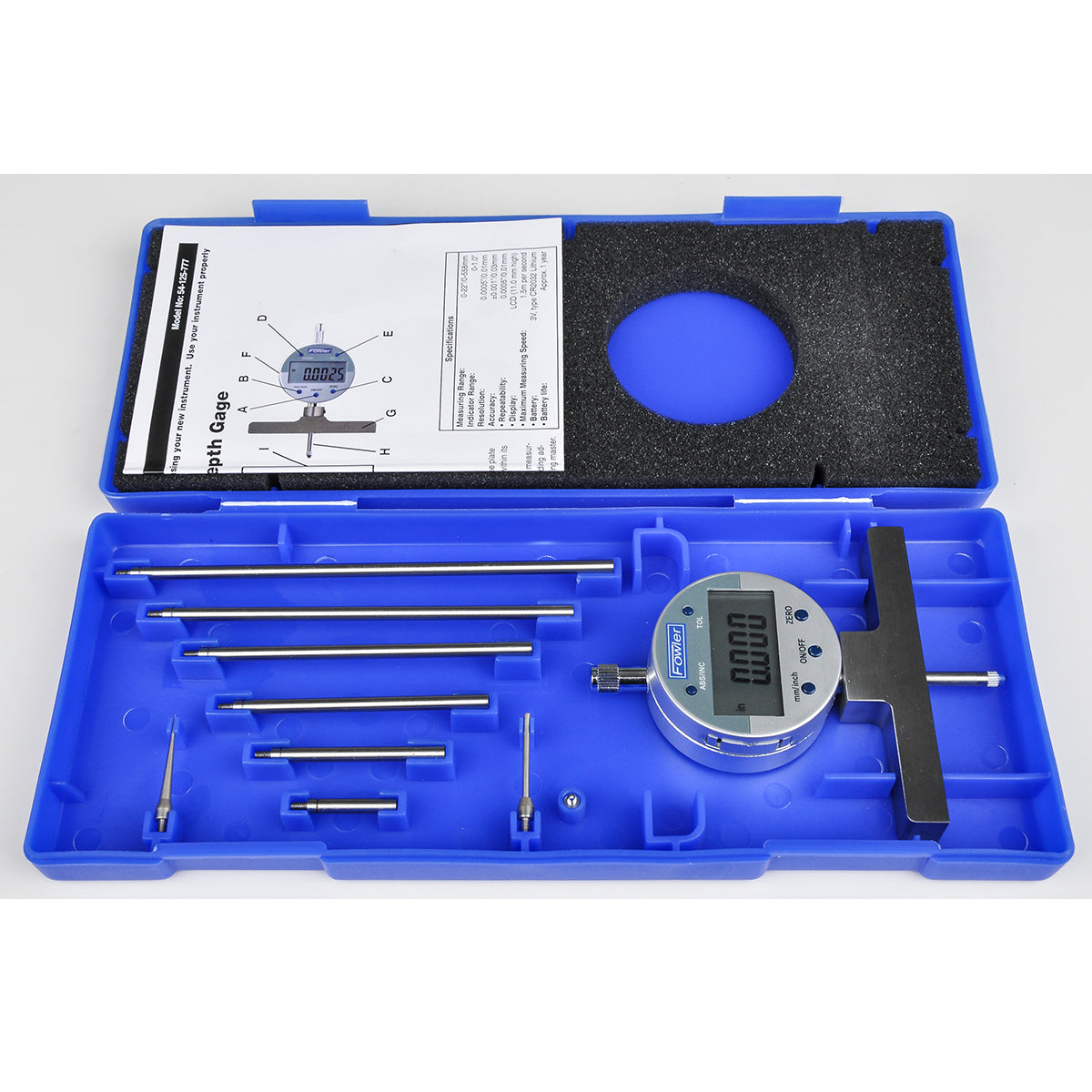

• Includes shop hardened case

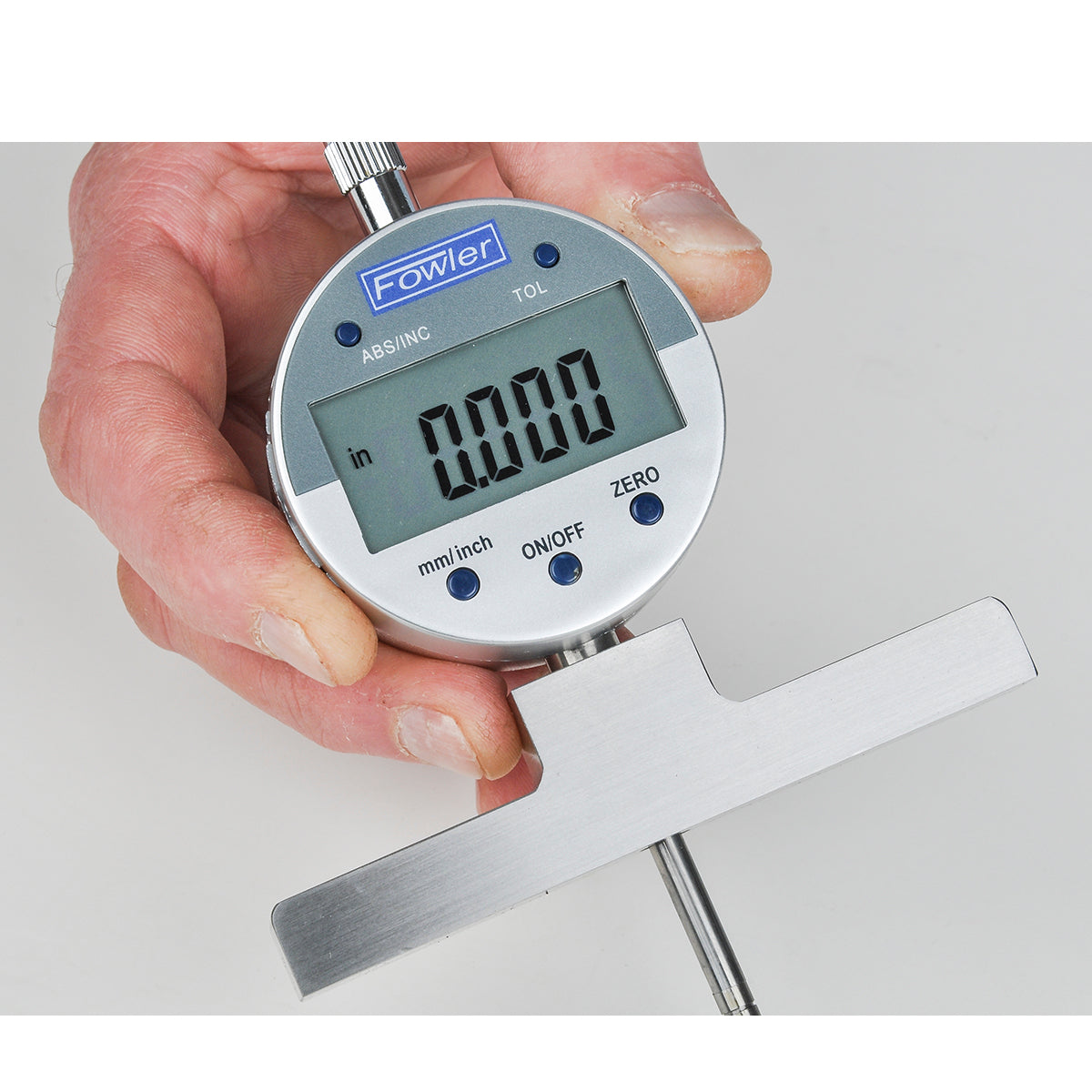

Indicator Features:

• 0-1" travel electronic indicator with 3/8" stem
• Resolution: .0005"/.01mm
• Direct inch/metric conversion
• Zero reset at any position
• On/off button
• Hold feature
• Relative/absolute measuring
