Fowler 0.089" - 0.250"/2.25 - 6.35mm MicroGage
SKU: 545510120
- Regular price
- $4,162.45
- Sale price
- $4,162.45
- Regular price
2-Point Small Bore Gaging System
The Fowler-Bowers MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0 - 6.0 mm. The measuring heads are equipped with spherical, split-ball, hard-chromed contact points.
Features:
• System range : 0.040" - 0.250"/1 - 6mm
• Switchable resolution 0.0005", 0.00005"/0.01, 0.001, 0.0005mm
• Repeatability : 0.00005"/0.001mm
• Sets include setting rings
• UKAS-certificates as standard with all setting rings
• Depth stops available

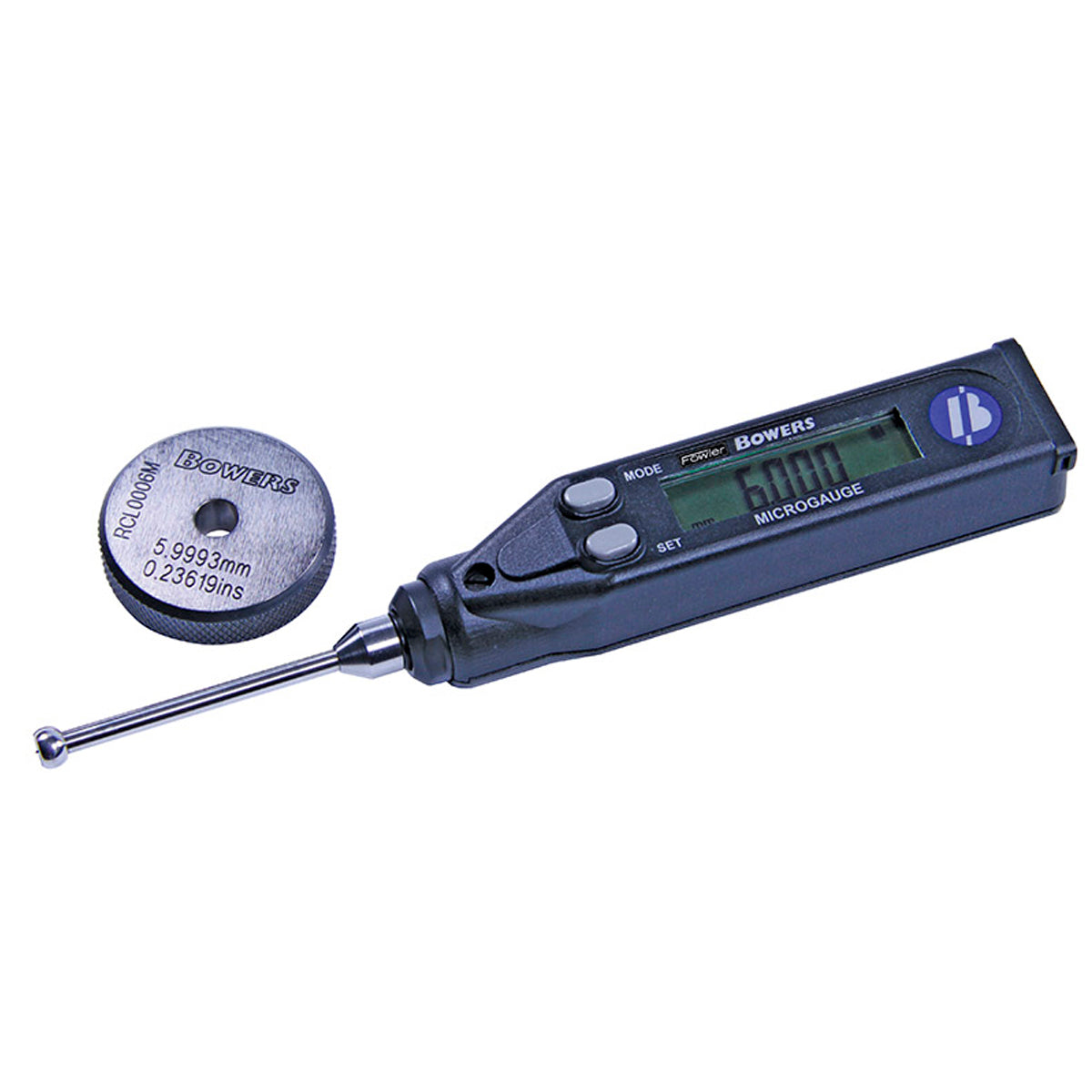

*Image shown for representational purposes only
The Fowler-Bowers MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0 - 6.0 mm. The measuring heads are equipped with spherical, split-ball, hard-chromed contact points.
Features:
• System range : 0.040" - 0.250"/1 - 6mm
• Switchable resolution 0.0005", 0.00005"/0.01, 0.001, 0.0005mm
• Repeatability : 0.00005"/0.001mm
• Sets include setting rings
• UKAS-certificates as standard with all setting rings
• Depth stops available
*Image shown for representational purposes only
