Fowler 0.060" - 0.167"/1.5 - 4.25mm MicroGage
SKU: 545510110
- Regular price
- $3,866.76
- Sale price
- $3,866.76
- Regular price
2-Point Small Bore Gaging System

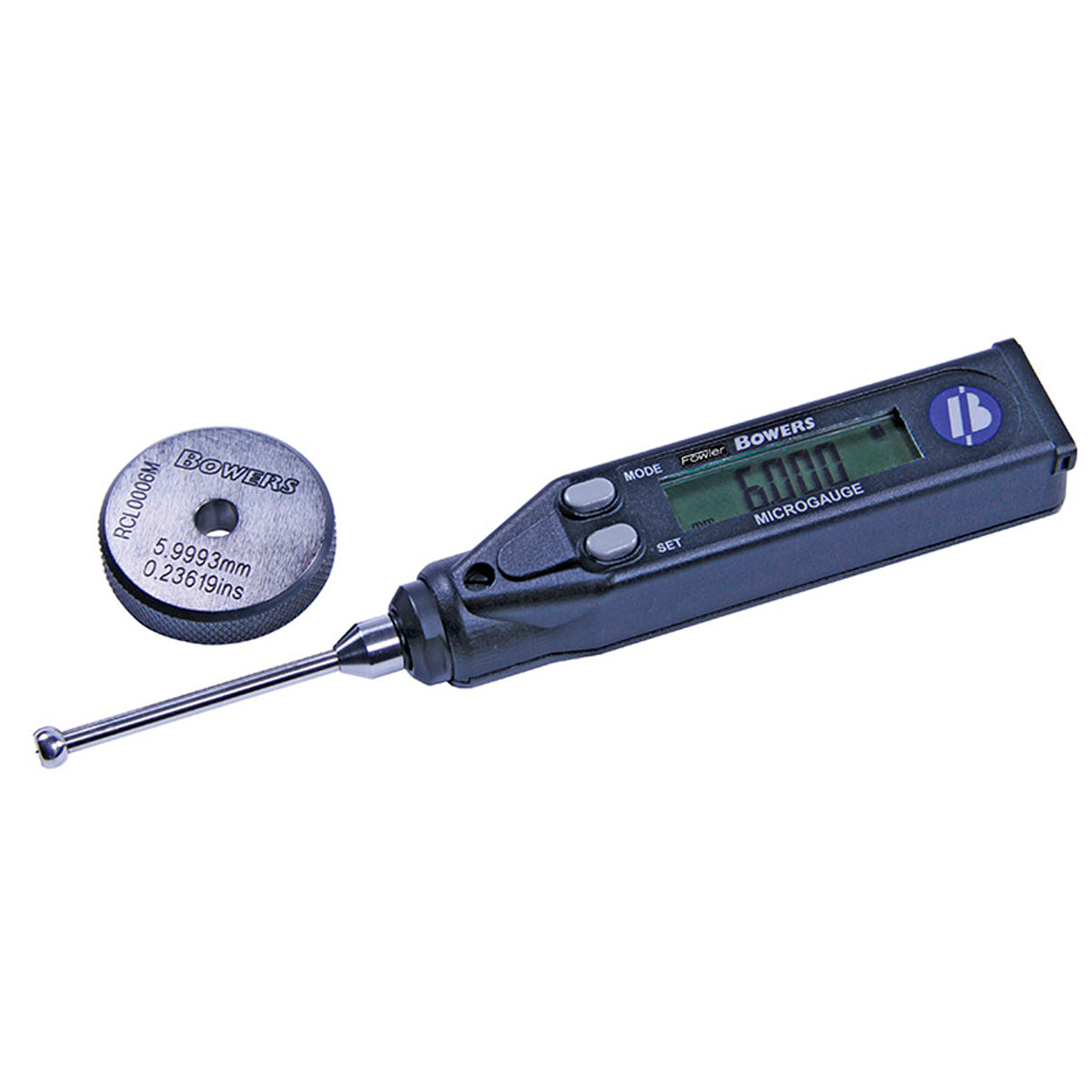

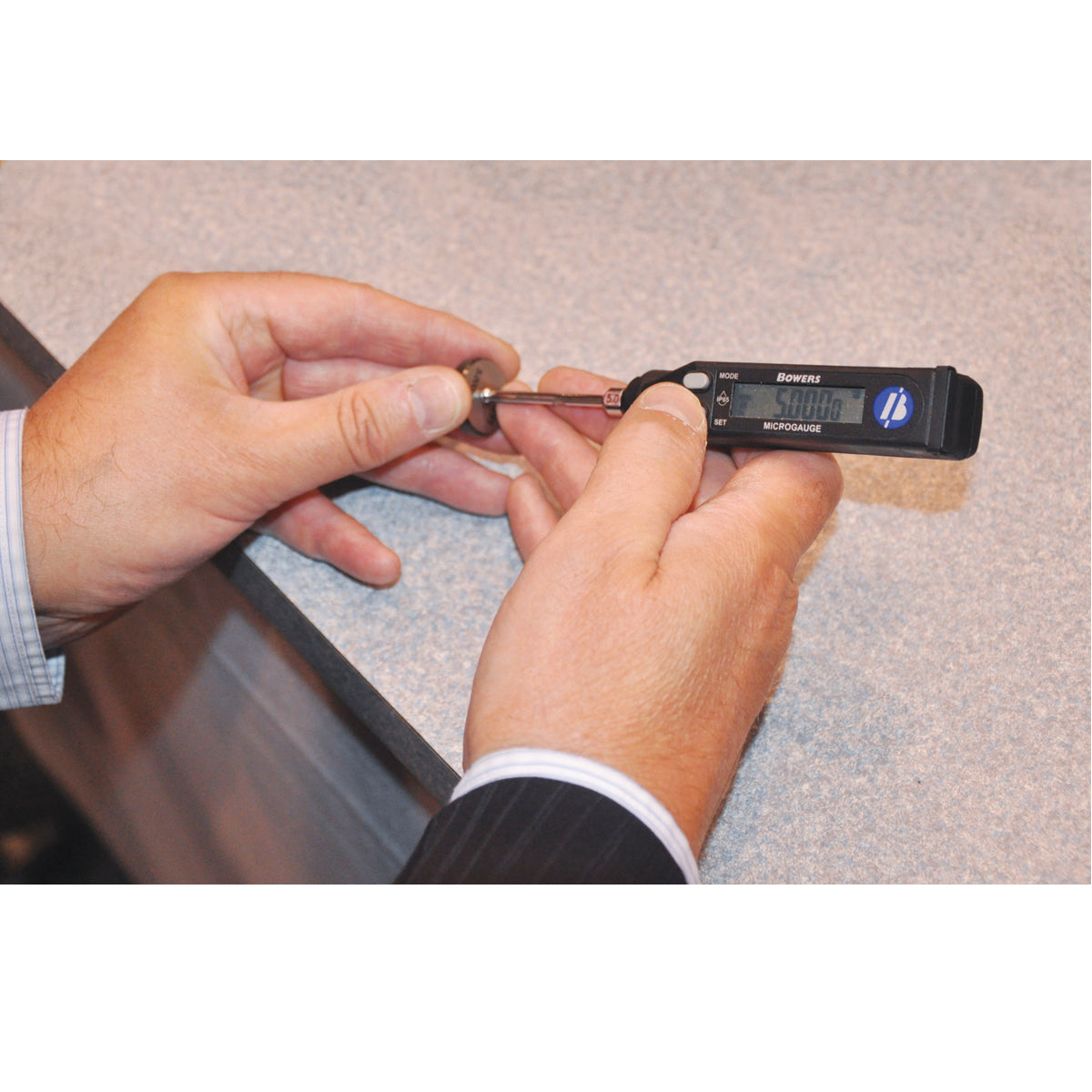

The Fowler-Bowers MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0 - 6.0 mm. The measuring heads are equipped with spherical, split-ball, hard-chromed contact points.
Features:
• System range : 0.040" - 0.250"/1 - 6mm
• Switchable resolution 0.0005", 0.00005"/0.01, 0.001, 0.0005mm
• Repeatability : 0.00005"/0.001mm
• Sets include setting rings
• UKAS-certificates as standard with all setting rings
• Depth stops available
*Image shown for representational purposes only
The Fowler-Bowers MicroGage 2-point bore gaging system has been designed specifically for the measurement of small bores between 1.0 - 6.0 mm. The measuring heads are equipped with spherical, split-ball, hard-chromed contact points.
Features:
• System range : 0.040" - 0.250"/1 - 6mm
• Switchable resolution 0.0005", 0.00005"/0.01, 0.001, 0.0005mm
• Repeatability : 0.00005"/0.001mm
• Sets include setting rings
• UKAS-certificates as standard with all setting rings
• Depth stops available
*Image shown for representational purposes only
Ships in 2-4 weeks
