The Measur3D manual CMM (Coordinate Measuring Machine)
An entry-level, easy-to-use, 3D inspection tool - perfect for first part validation
What makes the Measur3D an exceptional tool for your shop?
A quick preview of the Measur3D (formerly, the Fulcrum) from Fowler Application Engineer, Collin (~1 min) -->
Easy-to-learn... right out of the box
You can be up and running in hours, not weeks
Things customers love about the Measur3D(formerly the Fulcrum):
- Quick & easy first part & small batch inspection - keep the production line moving
- Scan mode with the probe (watch here)
- Guided routines give less experienced operators a step-by-step guide to follow for consistency & accuracy
- "Feature Selection" mode to speed up inspection of complex common shapes & features
X-Axis Range
280mm
Y-Axis Range
280mm
Z-Axis Range
150mm
Volumetic Accuracy
5.0µm + L/1000mm
Entry-level, Manual CMM

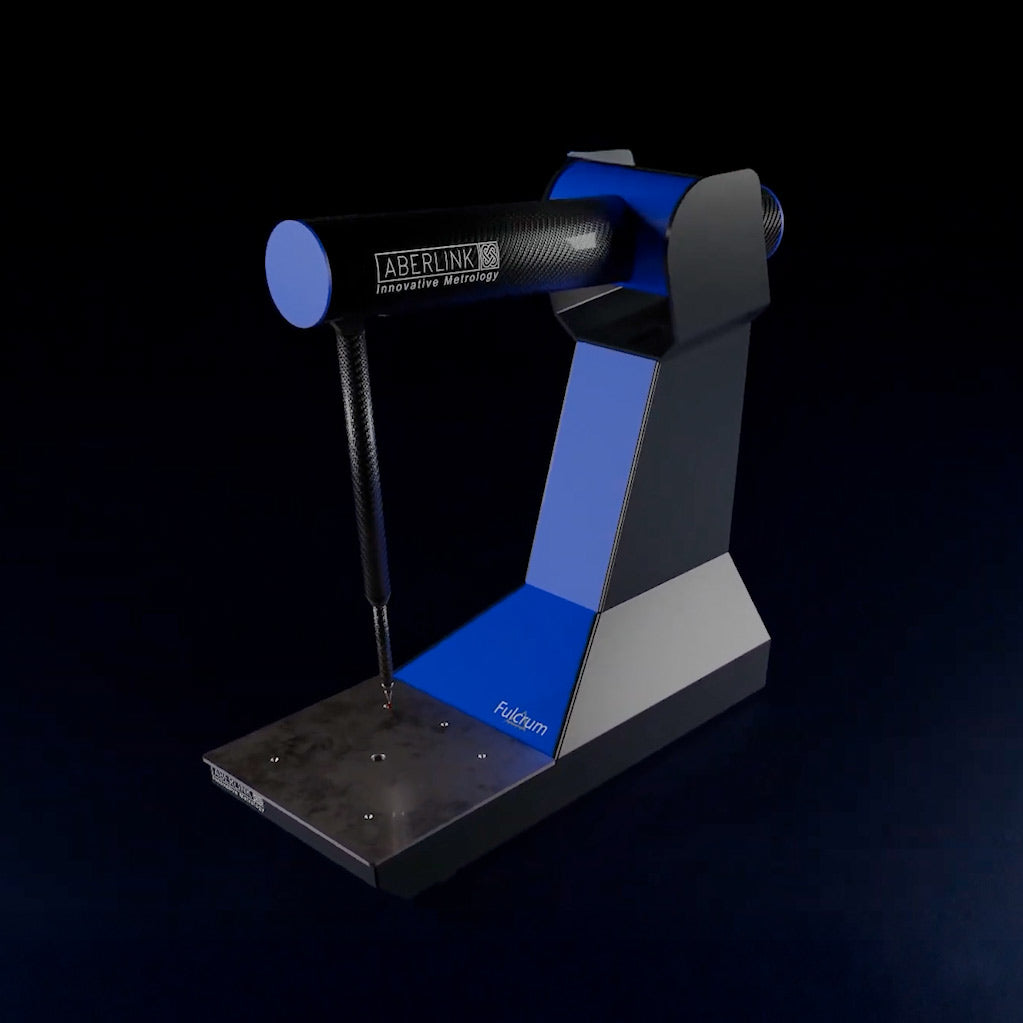

Built for the shop floor
- Benchtop design makes it easy to put next to machine tools
- Magnetic 'Feature buttons(video)' minimize keyboard input (speeding up the process)
- Compared to CAD functionality, CAD output(video) - you can even create guided routines using the CAD file before you make the part
- Entry-level pricing (ask our chatbot for the latest pricing)

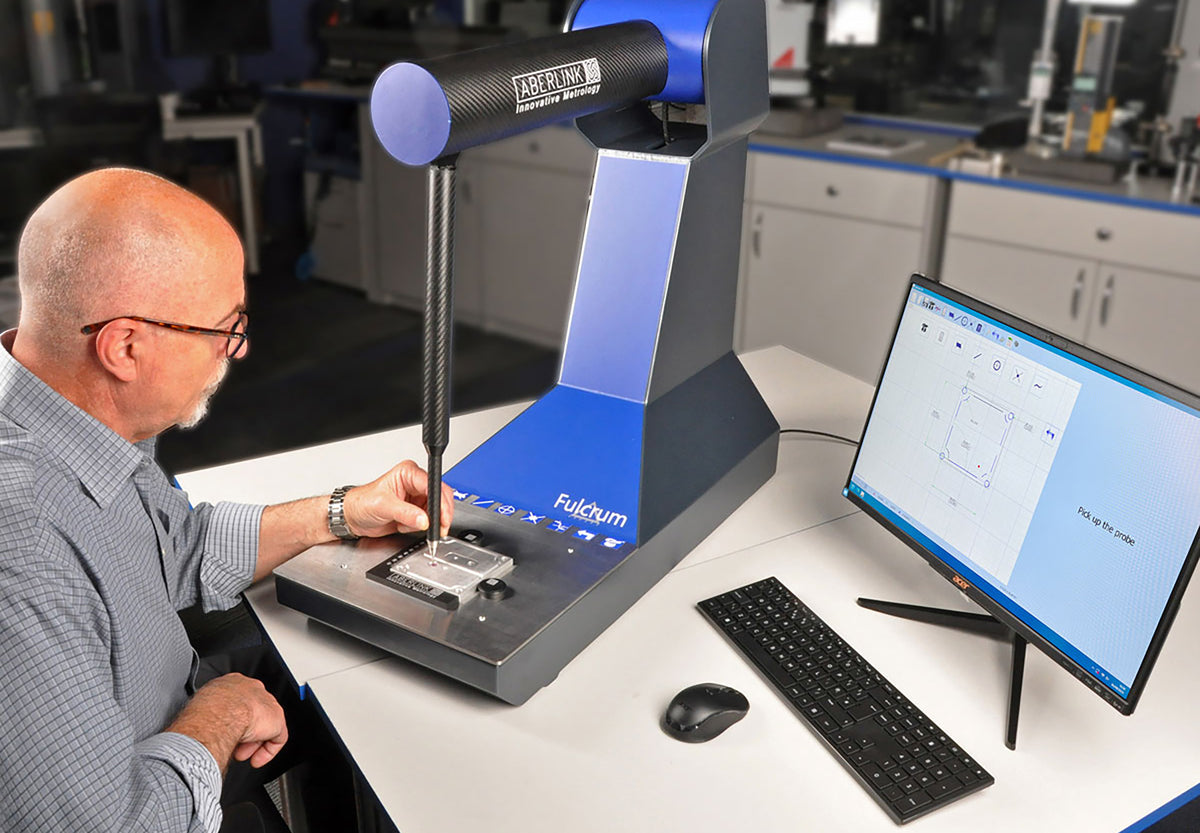

Intuitive CMM machine & software design is here
Scanning mode is great for reverse engineering and hard-to-measure features
Things customers love about the Measur3D & Aberlink3D software:
- Accurate size and form analysis - Precise dimensional and geometric evaluation with sub-5 micron accuracy
- Automatic feature recognition - Software instantly identifies features and displays dimensions without manual input
- Real-time feedback - Inspect parts immediately after machining to prevent scrap and rework

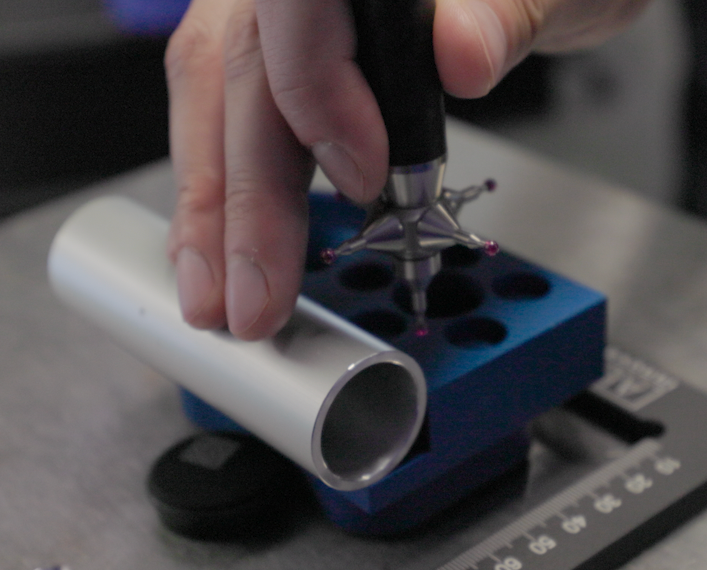

Extending functionality with Star Probes

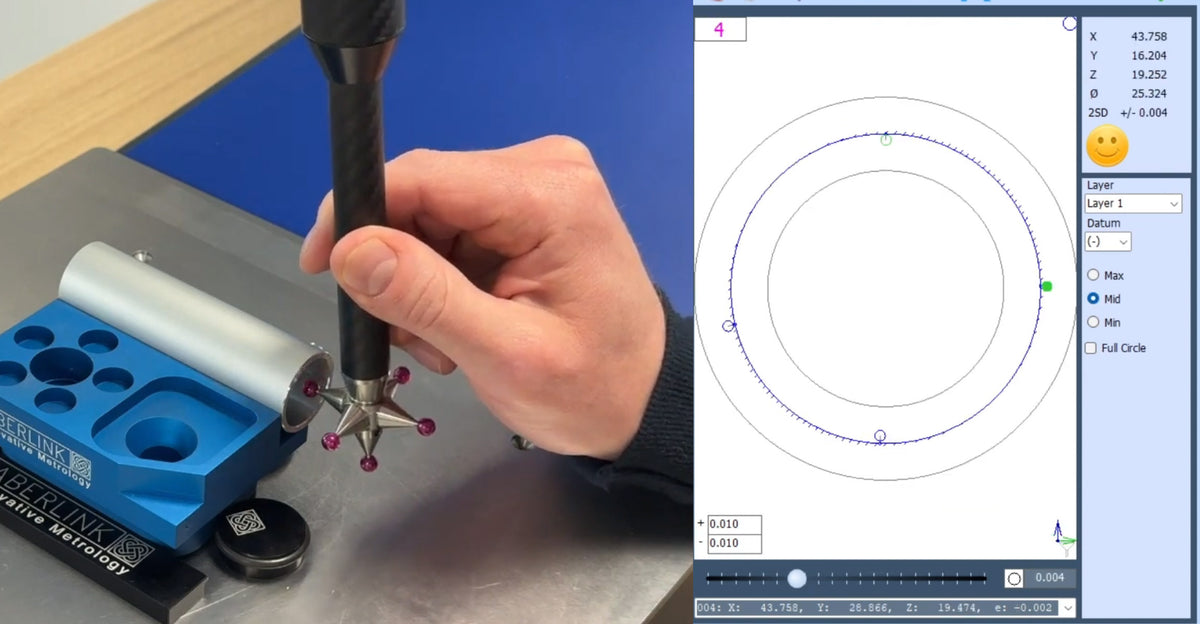

The Star Stylii included give you true 3D ability
- Enhanced accuracy - The custom-designed styli maintain the CMM's metrology performance
- Side-face accessibility - Enables measurement of features in X-Z or Y-Z projection planes, dramatically increasing versatility
- Full 3D measurement - Transforms the Measur3D from a 2.5D to a full 3D measuring system
- Probes available in multiple sizes - The kit includes both 3mm and 6mm star styli with a calibration artifact
The Measur3D uses the same software as all of our CMMs - Aberlink3D
Often overlooked, the software ease-of-use is a critical component of a successful CMM inspection process - and making it easy for all team members to learn & use.
When CMM software is modern & intuitive
Aberlink3D software is quite simply the best
- Visual measurement model – Aberlink 3D builds a 3D representation of the part as you measure, allowing you to click features to call up dimensions like they appear on drawings.
- Automatic feature recognition – Automatic routines and feature recognition handle 2D/3D inspection (manual or CNC) for geometric and free‑form shapes.
- Simple programming – Teach‑and‑repeat routines and a drag‑and‑drop editor let you create or edit programs without learning code.
- Safe moves & auto‑programming – The software automatically generates safe moves and saves inspection routines for future parts.
- Flexible reporting – Generate drawing‑style GD&T reports, pass/fail summaries or batch and SPC reports, then export to Excel.
- CAD comparison – Import STEP/IGES models, align point clouds and display colour‑coded deviations with best‑fit routines.
- CAD programming – Click on surfaces in a CAD model to define measurement points; Feature Predict identifies planes, circles or cylinders.
- Vision integration – A kinematic joint lets you swap between probe and camera quickly; the vision module offers automatic edge detection and smart‑measure tools.
