The Extol Shop-floor CMM (Coordinate Measuring Machine)
An easy-to-use, 3D inspection tool - with minimal space requriements
What makes the Extol CMM a great inspection tool for your shop?
A quick preview of the Extol from Fowler Application Engineer, Collin (~1 min) -->
Easy-to-learn... right out of the box
You can be up and running in hours, not weeks
Things customers love about the Extol:
- Quick & easy to get up and running
- Teach & Repeat! Create an inspection routine by using the joystick and simply hit the 'play' button to have it repeat your program
- Small footprint - with as little as 5.6sq ft needed
- No air required!
X-Axis Range
370mm, 520mm
Y-Axis Range
370mm, 520mm
Z-Axis Range
270mm, 300mm
Volumetric Accuracy
TP20
(2.6µm + L/250mm)
TP200
(2.5µm + L/250mm)
SP25M
(2.3µm + L/250mm)
The Extol Design
Built for the shop floor
- Open on three sides - makes access from anywhere on the shop floor
- Automation-ready, Automation-proven - ready for future efficiency gains with robots (see below)
- Fully sealed recirculating bearings proven in the machine tool market significantly improve smoothness and and long term accuracy
- Swiss-made DC motors and a new Deva motion control system paired with a belt drive system provide unparalleled reliability - prefect for the shop floor
- The super-smooth belt-drives and linear bearings also enable long styli to be used without suffering false triggering due to vibration
- Built for 24/7 operation with five temperature sensors, Extol delivers lab-accurate measurements in uncontrolled shop-floor environments for consistent quality control.
Futureproof design

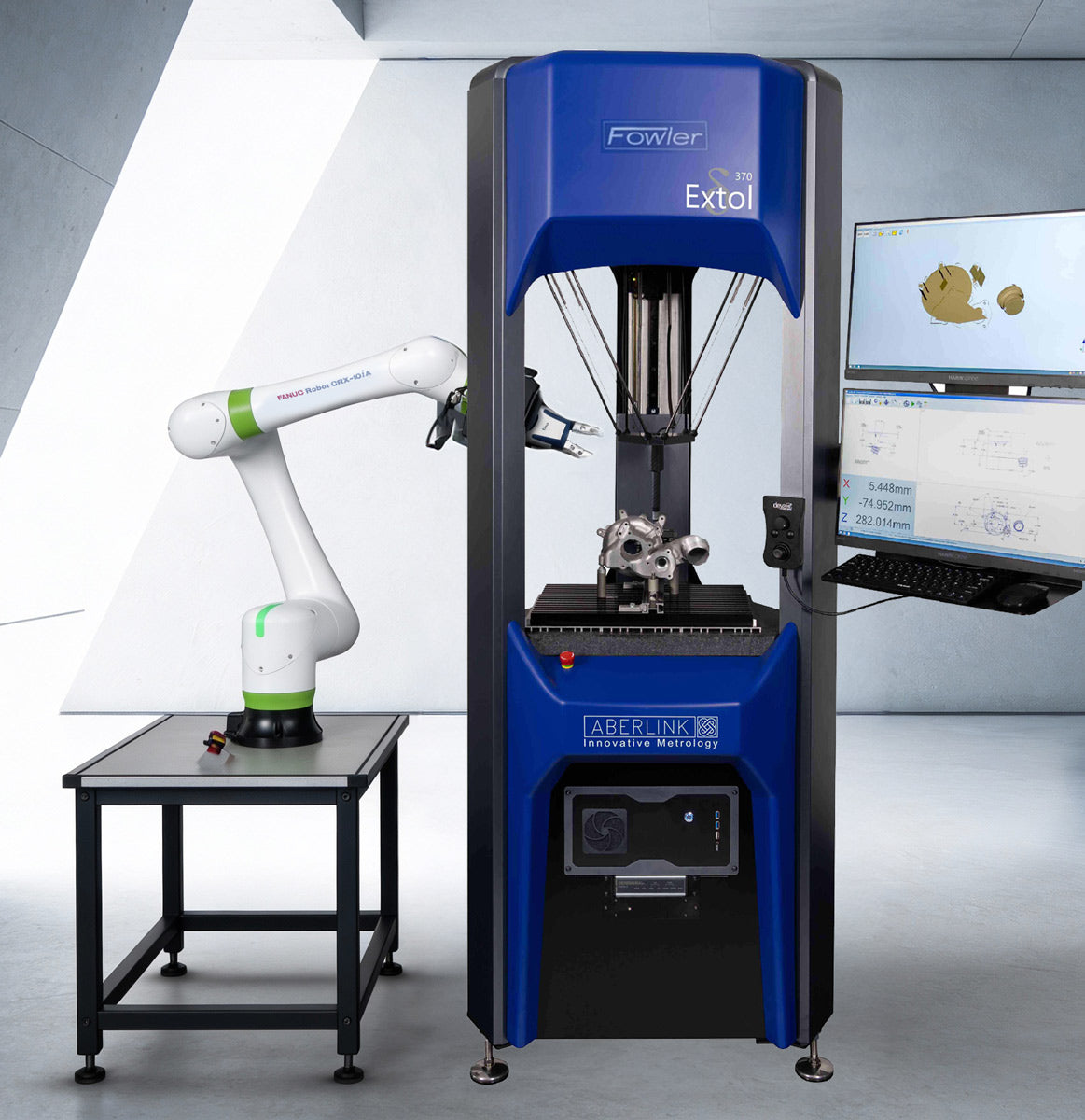

Automation-proven design
Futureproof your inspection process with the Extol's automation-ready design
- Open frame design makes for easy access from any side for robot arm
- Ergonomic design enables quick one-off or batch inspections with industry-leading measuring volume, accuracy, and reliability for automated quality verification.

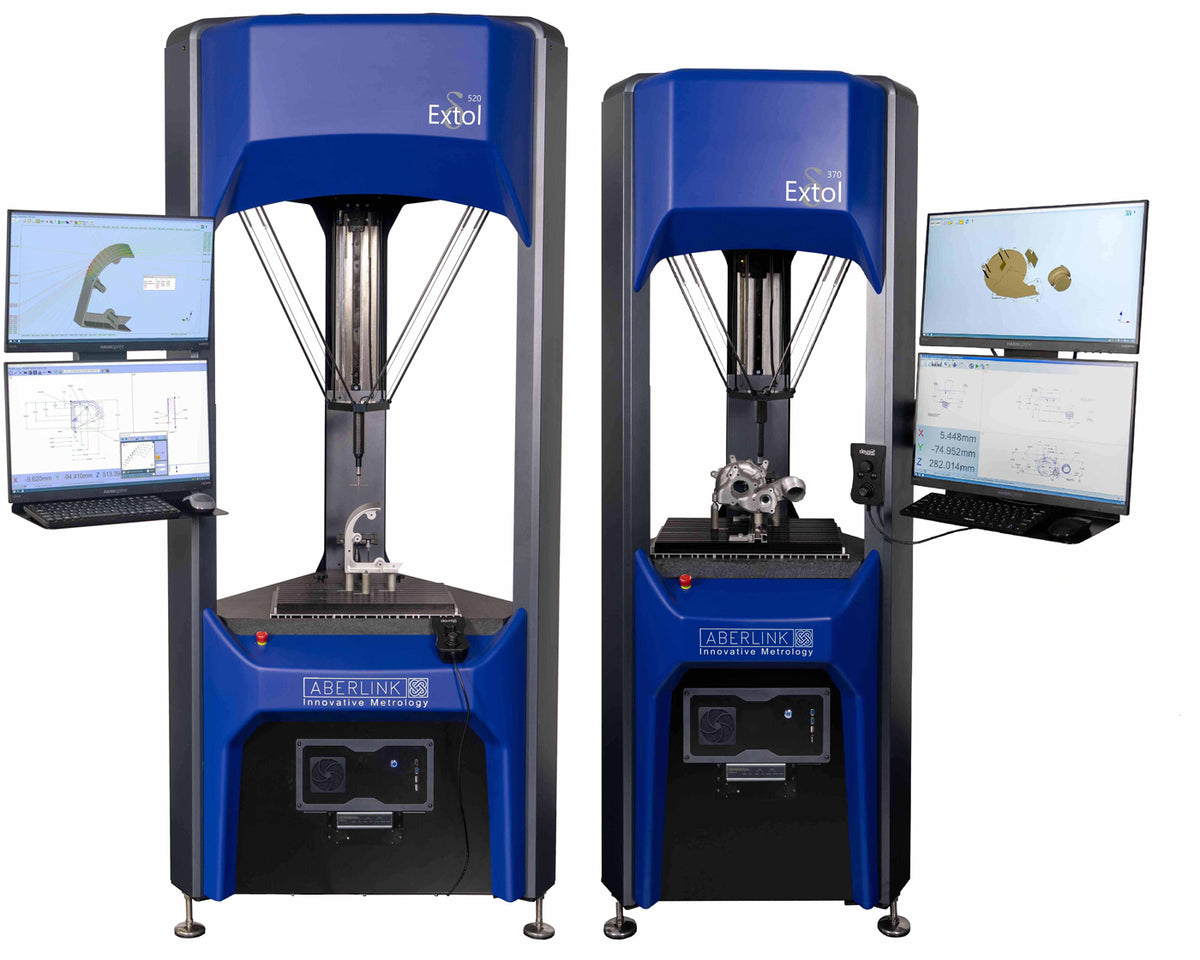

2 Sizes available
Flexible size & probe options
- Available as Extol 370 and Extol 520 (see specifications below for volumetric range and Extol space requirements)
- TP20 'touch trigger' probe & SP25M 'contact scanning' probe options (watch a comparison video here)
- Delta design yields a compact footprint vs traditional bridge CMMs and enables near-machine placement (watch the Extol in action in this automated cell)
The Extol uses the same software as all of our CMMs - Aberlink3D
Often overlooked, the software ease-of-use is a critical component of a successful CMM inspection process - and making it easy for all team members to learn & use.
When CMM software is modern & intuitive
Aberlink3D software is quite simply the best
- Visual measurement model – Aberlink 3D builds a 3D representation of the part as you measure, allowing you to click features to call up dimensions like they appear on drawings.
- Automatic feature recognition – Automatic routines and feature recognition handle 2D/3D inspection (manual or CNC) for geometric and free‑form shapes.
- Simple programming – Teach‑and‑repeat routines and a drag‑and‑drop editor let you create or edit programs without learning code.
- Safe moves & auto‑programming – The software automatically generates safe moves and saves inspection routines for future parts.
- Flexible reporting – Generate drawing‑style GD&T reports, pass/fail summaries or batch and SPC reports, then export to Excel.
- CAD comparison – Import STEP/IGES models, align point clouds and display colour‑coded deviations with best‑fit routines.
- CAD programming – Click on surfaces in a CAD model to define measurement points; Feature Predict identifies planes, circles or cylinders.
- Vision integration – A kinematic joint lets you swap between probe and camera quickly; the vision module offers automatic edge detection and smart‑measure tools.
Download the CMM Brochure
Check out our comprehensive CMM lineup and find the one that best fits your application
Extol Specifications
| Specification | Extol 370 | Extol 520 |
|---|---|---|
| Axis Travel (mm) | XY: Dia. 370mm Z: 270mm |
XY: Dia. 520mm Z: 300mm |
| Overall Size (mm) | X: 730mm Y: 715mm Z: 2000mm |
X: 730mm Y: 715mm Z: 2000mm |
| Motion | CNC | CNC |
| CMM Structure | Delta | Delta |
| Suitable For | Inspection Room / Shop Floor | Inspection Room / Shop Floor |
| Drive Type | Belt (w/linear bearings) | Belt (w/linear bearings) |
| *Volumetric Accuracy | TP20(2.6µm + L/250mm)TP200(2.5µm + L/250mm)SP25M(2.3µm + L/250mm) | TP20(2.6µm + L/250mm) TP200(2.5µm + L/250mm) SP25M(2.3µm + L/250mm) |
| Scale Resolution | 0.1µm | 0.1µm |
| **Optimum Temp Range | 18 - 22°C 64°F - 72°F | 18 - 22°C 64°F - 72°F |
| Operational Temp Range | 5 - 45°C 41°F - 113°F | 5 - 45°C 41°F - 113°F |
| Table Construction | Solid Granite | Solid Granite |
| Table Load Capacity | 200kg | 200kg |
| Max. Velocity Vector | 500mm/sec | 500mm/sec |
| Max. Acceleration Vector | 750mm/sec² | 750mm/sec² |
| Air Required? | No | No |
| Air Consumption | N/A | N/A |
| Required Air Pressure | N/A | N/A |
| Aberlink Camera support | No | No |
