A $96 micrometer and an $850 one can both read to the same resolution. What separates them shows up when the micrometer actually gets used: the IP rating, the anvil shape, and whether the reading leaves the tool on its own. Fowler's electronic line runs from an economy model to Swiss-made Bluetooth micrometers with a lifetime warranty, all reading to 0.00005"/0.001mm.
How to choose
IP rating
IP40 vs. IP54 vs. IP65/IP67
IP40 (the Xtra-Value line) is built for toolbox storage and general bench use, without a dust or moisture rating for machine-side work. IP54 handles dust and light splash, the standard for most shop-floor electronic micrometers. IP65 and IP67, found on thread micrometers and the premium Swiss line, hold up to sustained coolant exposure at the spindle.
Anvil shape
Match the anvil to the feature
Standard flat anvils cover general outside measurements, while ball anvils reach inside tubes and holes to the outer edge. Blade anvils get into narrow grooves and T-slots, and point anvils reach small grooves, keyways, and flutes. Buying the wrong anvil for the feature means the reading, however precise, isn't measuring what you think it is.
Data output
When Bluetooth and a lifetime warranty are worth it

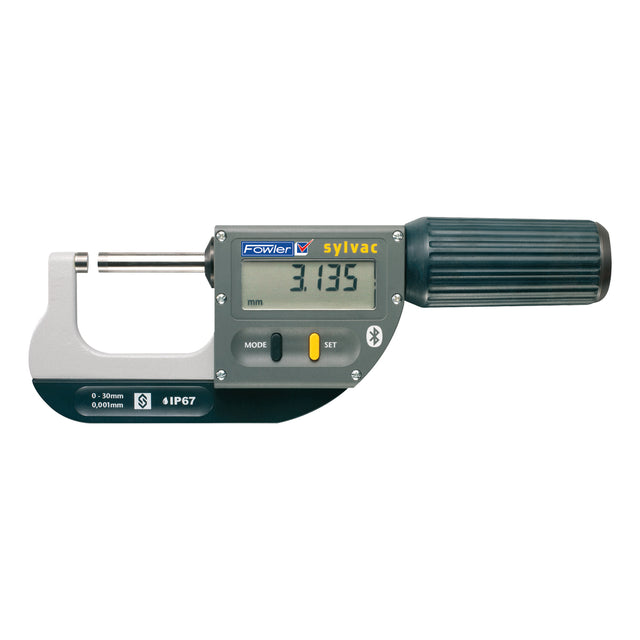

The Swiss-made Rapid-Mic line adds Bluetooth data output, IP67 protection, and a lifetime warranty, at a price that only makes sense if the data actually needs to land in an SPC system, or the mic needs to survive decades of daily use. For a bench mic checking parts against a print, the mid-tier IP54 line covers the job at a fraction of the cost.
Common questions
IP54 protects against dust and light splashing, enough for most shop-floor use. IP67 survives full coolant exposure at the spindle, which is why it shows up on the premium Swiss-made line built for that environment.
Only if the reading needs to reach an SPC log or report automatically. If a reading and a checkmark is the whole job, a mid-tier IP54 micrometer covers the same measurement without paying for the wireless connection.
A micrometer head is the measuring mechanism alone, without a frame, meant to be built into a custom fixture or gage rather than used as a handheld tool. Most shops need a standard handheld micrometer, not a head. Heads are for specific fixture-building applications.
