Fowler-Bowers BLUETOOTH 0.080" - 0.250"/2 - 6mm XTH3 Holematic Pistol Grip Set

SKU: 54567009BT

$7,737.00

Fowler-Bowers BLUETOOTH XTH3 Holematic Pistol Grip Sets range of bore gages offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliminate operator "feel."

  • To reduce hand fatigue, the travel of the trigger is adjustable for minimum over-travel.
  • Larger easy-to-read swivel display
  • Self centering heads
  • Proximity output and USB connectivity.
  • Four preset memories
  • Fixed anvils
  • Resolution: .00005" /.001mm
  • Range .080"—12" (2—300mm)
  • Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up.
  • Heads with special anvils available for threads, splines, slots, etc.
  • Sizes over .500" (12.5mm) feature blind bore capability
  • Setting rings included in all sets
  • Includes UKAS certificates for all pistol grip, heads and rings.
  • Special anvils available

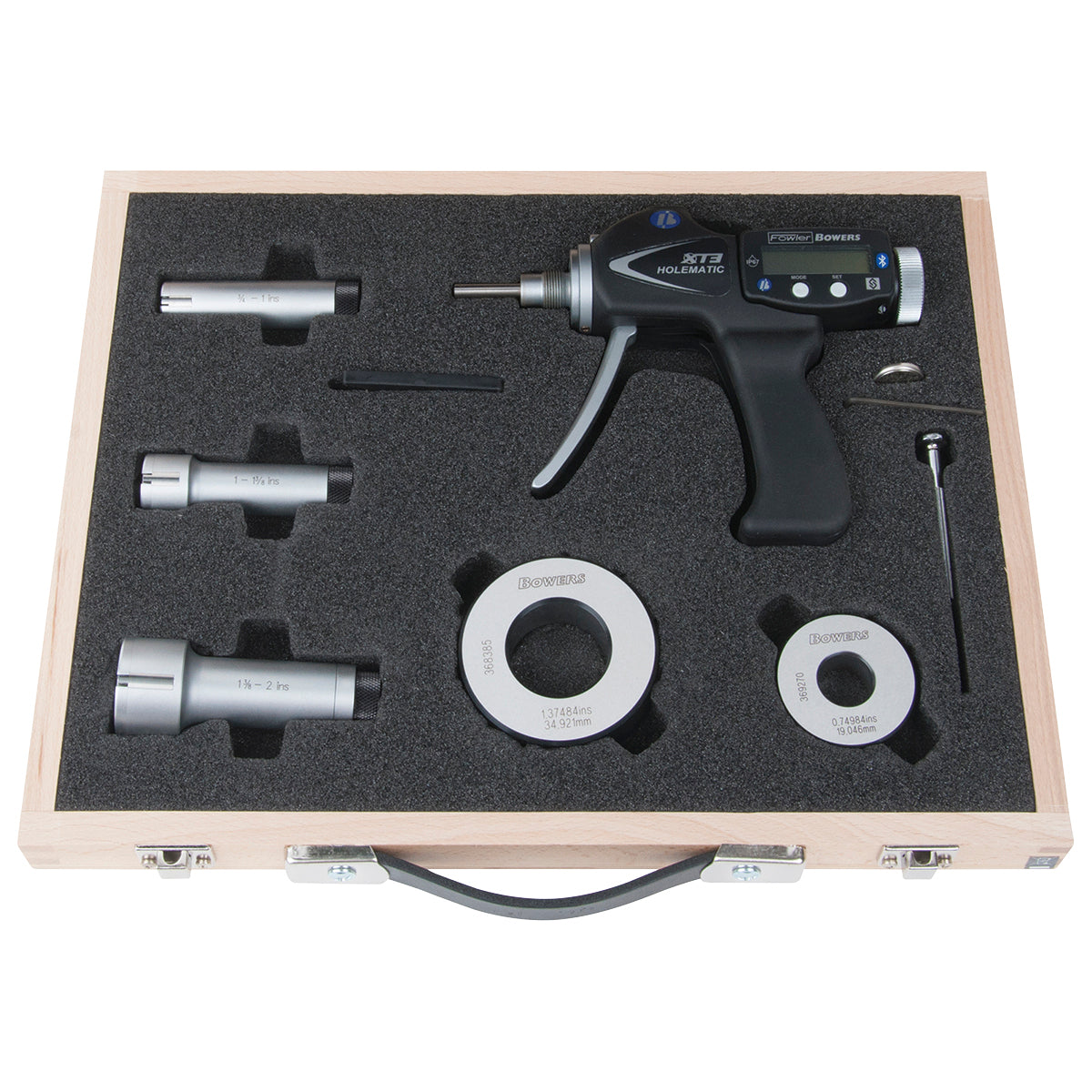

Electronic Holematic Pistol Grip XTH3 Set includes 5 heads, 1 handle, 3 rings

Contact the Fowler Technical Department for special anvil applications

*Image shown for representational purposes only

Ships in 2-4 weeks

Sale pricing only applies to in-stock items
  • Additional Details & Features
  • Videos

Set Includes:5 heads, 1 handle, 3 rings
Range: 0.080″ - 0.250″/2 - 6mm


https://www.youtube.com/embed/Ms09WERxSNM
